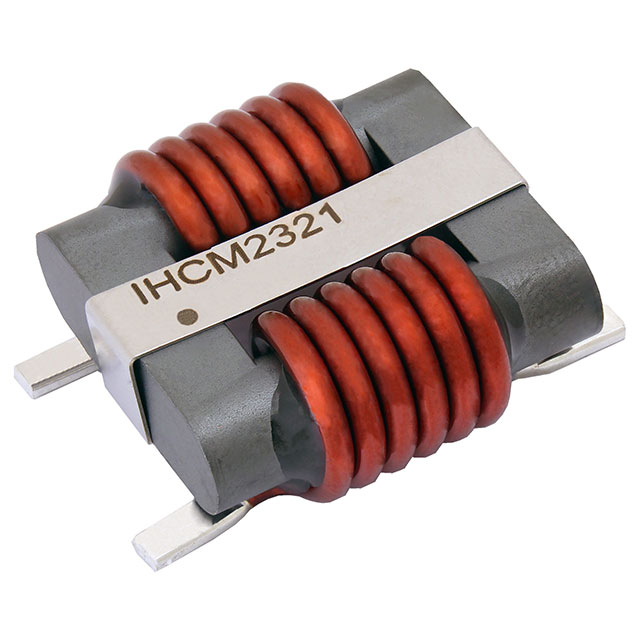

IHCM2321AAEG251N10

$9.06

Description：CMC 250UH 14A 2LN 850 OHM SMD
Series：IHCM-2321AA-10
Mfr：Vishay Dale
Package：Bulk

SKU:cbaf071cda86 Category: Common Mode Chokes Brand: Vishay Dale

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IHCM2321AAEG251N10 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Vishay Dale. Its product description is CMC 250UH 14A 2LN 850 OHM SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for IHCM2321AAEG251N10

Description：CMC 250UH 14A 2LN 850 OHM SMD
Series：IHCM-2321AA-10
Mfr：Vishay Dale
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：14A
DC Resistance (DCR) (Max)：5mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 155°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.965" L x 0.965" W (24.50mm x 24.50mm)
Height (Max)：0.413" (10.50mm)
Package / Case：Horizontal, 4 Flat Lead
Inductance @ Frequency：250 µH @ 100 kHz
Impedance @ Frequency：850 Ohms @ 10 MHz
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for IHCM2321AAEG251N10

IHCM2321AAEG251N10

Common Mode Chokes Overview

The IHCM2321AAEG251N10 is a surface-mount common mode choke from Vishay Dale, designed for high-current applications. It features an inductance of 250 µH and an impedance of 850 Ohms at 10 MHz. The component supports a maximum DC current of 14 A with a maximum DC resistance of 5 mOhms. Operating within a temperature range of -55°C to +155°C, it utilizes a composite core material and offers a low profile suitable for automated assembly.

Common Mode Chokes Feature Summary

Low SMD profile design compatible with automated pick and place assembly
High heat rating current capability up to 31 A and saturation current up to 35 A
Composite core material construction for enhanced thermal performance

Common Mode Chokes Applications

DC/DC Converters
High Current Filtering
EMI Suppression in Power Circuits

Common Mode Chokes Procurement Notes

Verify the specific suffix 'N10' against the official Vishay datasheet to confirm exact electrical tolerances and packaging configuration. Ensure the selected variant matches the required 250 µH inductance and 14 A current rating for the target application circuit. Cross-reference the RoHS compliance status directly with the manufacturer's latest documentation before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a low-profile surface-mount common mode choke is required for high-current power stages. The 250 µH value provides effective noise attenuation while maintaining a compact footprint. Consider the 14 A continuous current rating and 5 mOhms DCR for efficiency calculations in dense PCB layouts where thermal management is critical.

Common Mode Chokes Part Context

This part belongs to the IHCM-2321 series of high-power common mode chokes. The series is characterized by its robust composite core and ability to handle significant current loads in a small surface-mount package. It serves as a specialized solution for filtering electromagnetic interference in modern electronic power systems.
