IN-S21AT5UW

LED Indication - Discrete Overview

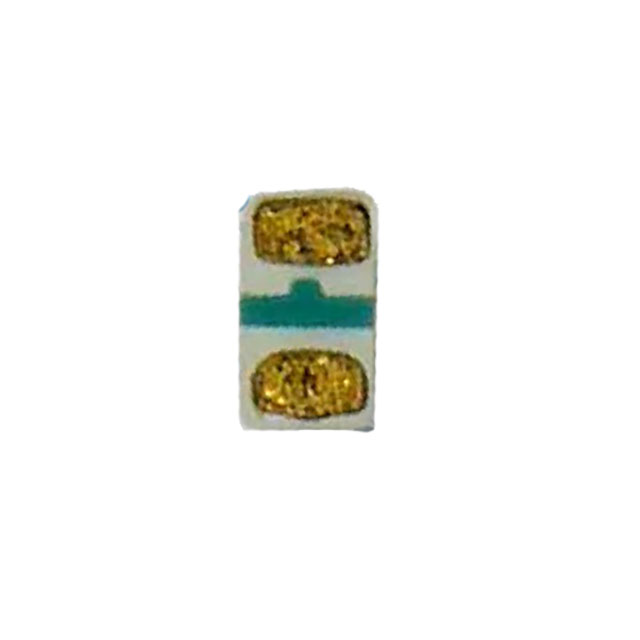

The IN-S21AT5UW is a top-view surface-mount white LED from Inolux, designed for discrete indication applications. It features a compact 0603 (0.65mm x 0.38mm) no-lead SMD package with a transparent lens. The component operates at a forward voltage of 2.9V and requires a test current of 5mA. It provides a viewing angle of 130 degrees, ensuring broad visibility. The device is moisture sensitive and packaged in reels for automated assembly processes.

LED Indication - Discrete Feature Summary

• Top-view surface-mount configuration for direct PCB integration
• Transparent lens design to maximize light output visibility
• Compact 0603 footprint suitable for space-constrained layouts

LED Indication - Discrete Applications

• Discrete status indication on electronic circuit boards
• Power state signaling in consumer electronics
• Indicator lighting in compact portable devices

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and ordering suffixes directly with Inolux or authorized distributors. Confirm moisture sensitivity handling requirements and reflow soldering profiles prior to procurement. Ensure the selected packaging quantity aligns with production volume needs. Cross-reference electrical parameters against the official product specification sheet to guarantee compatibility with target circuit designs.

LED Indication - Discrete Selection Notes

Select this component when a low-profile white indicator is required for high-density PCB layouts. The 130-degree viewing angle supports visibility in tight enclosures. Consider the 2.9V forward voltage drop during power budget calculations. Verify that the 0603 package dimensions fit within the designated board area without interfering with adjacent components.

LED Indication - Discrete Part Context

This part belongs to the IN-S21AT series of top-view SMD LEDs manufactured by Inolux. The series offers various color options and package sizes tailored for modern electronic manufacturing. The IN-S21AT5UW specifically addresses the need for bright white illumination in minimal space, utilizing standard surface-mount technology compatible with industry-standard pick-and-place equipment.

LED Indication - Discrete Replacement Considerations

Consult official cross-reference lists for verified substitutes. Ensure replacement parts match the 0603 package dimensions, 2.9V forward voltage, and 130-degree viewing angle. Verify that alternative sources provide identical moisture sensitivity levels and reflow characteristics to maintain assembly reliability.
