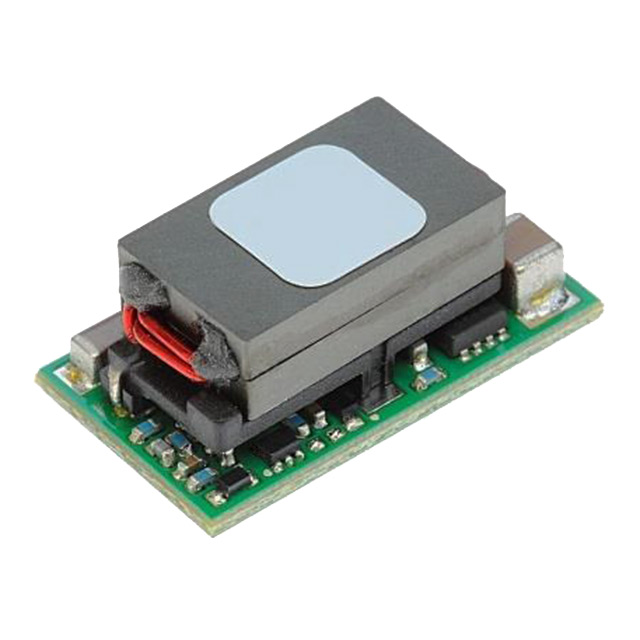

IND045W

IND045W is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 3-9V 45W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IND045W

• Description：DC DC CONVERTER 3-9V 45W
• Series：Hornet (34W)
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：9.6V
• Voltage - Input (Max)：14.4V
• Voltage - Output 1：3 ~ 9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：5A
• Power (Watts)：45 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：93.30%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm)
• Supplier Device Package：6-SMD
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
