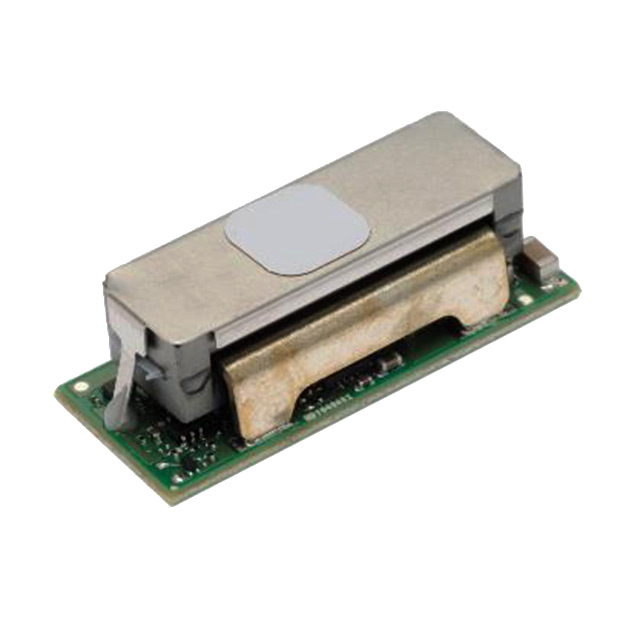

IND080

IND080 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.6-2V 80W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for IND080

• Description：DC DC CONVERTER 0.6-2V 80W
• Series：Hornet (80W)
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：9.6V
• Voltage - Input (Max)：14.4V
• Voltage - Output 1：0.6 ~ 2V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：40A
• Power (Watts)：80 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：-
• Mounting Type：Surface Mount
• Package / Case：19-SMD Module
• Size / Dimension：1.30" L x 0.53" W x 0.43" H (33.0mm x 13.5mm x 10.9mm)
• Supplier Device Package：19-SMD
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for IND080
