IRKL56/04A

$18.20

Description：SCR DBL HISCR 400V 60A ADDAPAK
Series：-

SKU:468a6ce49db8 Category: SCRs - Modules Brand: Vishay General Semiconductor - Diodes Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SCR DBL HISCR 400V 60A ADDAPAK
Series：-
Mfr：Vishay General Semiconductor - Diodes Division
Package：Bulk
Structure：Series Connection - SCR/Diode
Number of SCRs, Diodes：1 SCR, 1 Diode
Voltage - Off State：400 V
Current - On State (It (AV)) (Max)：60 A
Current - On State (It (RMS)) (Max)：135 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：1310A, 1370A
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：ADD-A-PAK (3 + 2)
Voltage - Gate Trigger (Vgt) (Max)：2.5 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：200 mA
Grade：-
Qualification：-

Download product information

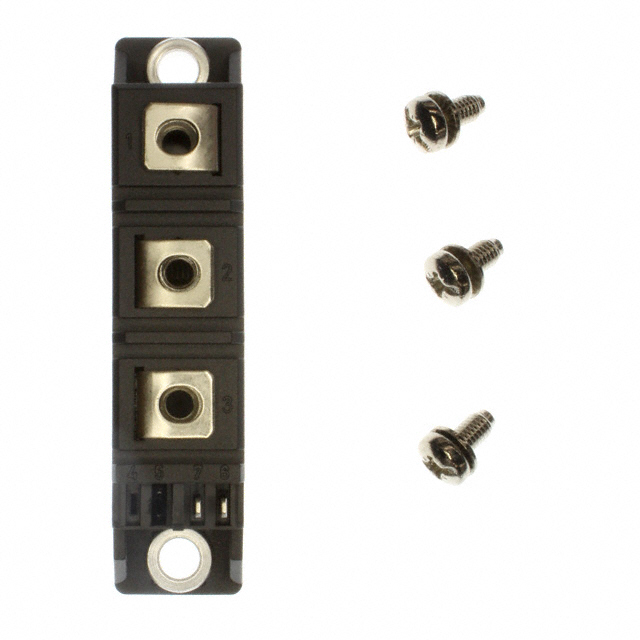

IRKL56/04A

Overview

The IRKL56/04A is a high-voltage silicon controlled rectifier module manufactured by Vishay General Semiconductor - Diodes Division. It features a single thyristor element with an integrated freewheeling diode, housed in the ADD-A-PAK GEN V package. The device supports a maximum repetitive peak reverse voltage of 400V and provides a continuous on-state current rating of 60A. Designed for industrial applications, it utilizes a thick copper baseplate for thermal management and offers isolated case connection.

Feature Summary

Integrates a thyristor and a freewheeling diode within a single component to simplify circuit design
Features an isolated case connection with UL recognition for enhanced safety
Utilizes a totally lead-free construction compliant with environmental standards

Applications

Industrial motor control systems
High voltage power supply circuits
Inverter and converter topologies

Procurement Notes

Verify the specific suffix against official Vishay documentation to confirm exact electrical ratings and pinout configuration. Ensure the procurement channel sources genuine components from authorized distributors to prevent counterfeit parts. Confirm that the ADD-A-PAK mounting requirements align with the intended heatsink interface before finalizing orders.

Selection Notes

Select this component when a combined switching and freewheeling function is required in a compact form factor. The 400V rating suits lower voltage industrial AC applications. Verify that the thermal resistance characteristics of the ADD-A-PAK package meet the system's cooling requirements for the expected load currents.

Part Context

This part belongs to the IRKL series of thyristor modules designed for robust industrial performance. The series is characterized by its compatibility with standard TO-240AA footprints while offering improved isolation and thermal properties through the ADD-A-PAK GEN V technology.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic replacements may differ in gate trigger characteristics or thermal resistance.
