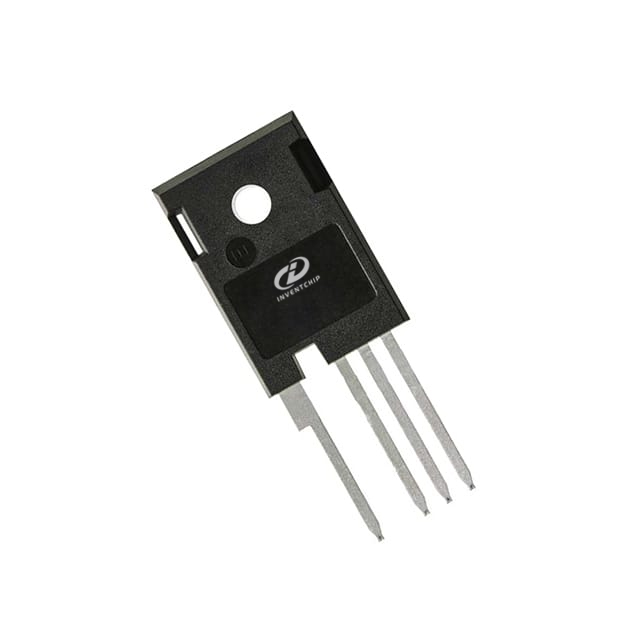

IV2Q07014T4Z

$20.96

Description：GEN 2, SIC MOSFET, 750V 14MOHM,
Series：-
Mfr：Inventchip
Package：Tube

SKU:8debbeb04978 Category: Single FETs, MOSFETs Brand: Inventchip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

IV2Q07014T4Z is listed in the Single FETs, MOSFETs range at ChipApex. The manufacturer field lists Inventchip. Its product description is GEN 2, SIC MOSFET, 750V 14MOHM,. Review the specifications below when checking this part for your BOM.

Single FETs, MOSFETs specifications for IV2Q07014T4Z

Description：GEN 2, SIC MOSFET, 750V 14MOHM,
Series：-
Mfr：Inventchip
Package：Tube
FET Type：N-Channel
Technology：SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)：750 V
Current - Continuous Drain (Id) @ 25°C：138A (Tc)
Drive Voltage (Max Rds On, Min Rds On)：18V
Rds On (Max) @ Id, Vgs：18mOhm @ 60A, 18V
Vgs(th) (Max) @ Id：4.5V @ 20mA
Gate Charge (Qg) (Max) @ Vgs：194.6 nC @ 18 V
Vgs (Max)：+20V, -5V
Input Capacitance (Ciss) (Max) @ Vds：4659 pF @ 700 V
FET Feature：-
Power Dissipation (Max)：554W (Tc)
Operating Temperature：-55°C ~ 175°C (TJ)
Grade：-
Qualification：-
Mounting Type：Through Hole
Supplier Device Package：TO-247-4
Package / Case：TO-247-4

Single FETs, MOSFETs datasheet and documents for IV2Q07014T4Z

IV2Q07014T4Z

Single FETs, MOSFETs Overview

The IV2Q07014T4Z is a second-generation Silicon Carbide (SiC) MOSFET manufactured by Inventchip Technology. It features a 750V drain-source voltage rating and an on-resistance of 14mΩ. The device is designed for high-efficiency power conversion applications, leveraging SiC material properties to reduce switching losses and improve thermal performance compared to traditional silicon devices.

Single FETs, MOSFETs Feature Summary

Utilizes Silicon Carbide semiconductor technology for enhanced thermal stability
Optimized for high-frequency switching operations in power electronics
Designed to minimize conduction and switching energy losses

Single FETs, MOSFETs Applications

High-efficiency DC-DC converters
Solar micro-inverters
On-board chargers for electric vehicles

Single FETs, MOSFETs Procurement Notes

Verify the specific package type and pin configuration against the official datasheet before integration. Confirm that the 750V rating aligns with your system's voltage requirements. Ensure proper thermal management solutions are implemented given the power density of SiC devices.

Single FETs, MOSFETs Selection Notes

Select this component when designing circuits requiring low on-resistance at 750V ratings. Consider its suitability for applications demanding higher switching frequencies than silicon counterparts allow. Evaluate thermal dissipation needs based on the 14mΩ characteristic.

Single FETs, MOSFETs Part Context

Inventchip Technology specializes in Silicon Carbide power devices and IC solutions. This part belongs to their second-generation SiC MOSFET lineup, aimed at improving efficiency in power conversion systems. The company focuses on developing advanced semiconductor technologies for industrial and automotive markets.

Single FETs, MOSFETs Replacement Considerations

Check for direct substitutes within the same voltage and current class. Verify compatibility with existing gate driver circuits due to potential differences in threshold voltages and capacitance values between different manufacturers' SiC MOSFETs.
