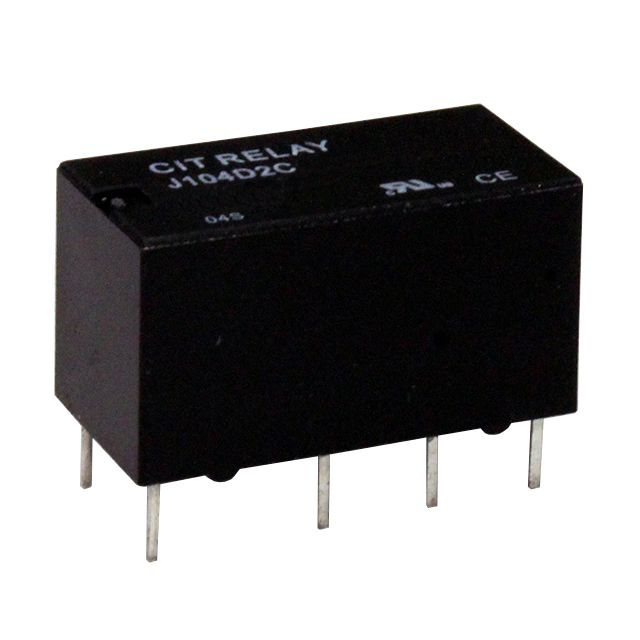

J104D2C3VDC.15S

J104D2C3VDC.15S is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists CIT Relay and Switch. Its product description is RELAY GENERAL PURPOSE DPDT 2A 3V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for J104D2C3VDC.15S

• Description：RELAY GENERAL PURPOSE DPDT 2A 3V
• Series：J104D
• Mfr：CIT Relay and Switch
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：3VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：2:00 AM
• Switching Voltage：250VAC, 100VDC - Max
• Load - Max Switching：500VA, 200W
• Coil Current：50 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：2.25 VDC
• Must Release Voltage：0.3 VDC
• Operate Time：6 ms
• Release Time：4 ms
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Nickel (AgNi), Gold (Au)
• Approval Agency：cURus
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for J104D2C3VDC.15S
