JANTXV1N4249

Single Diodes Overview

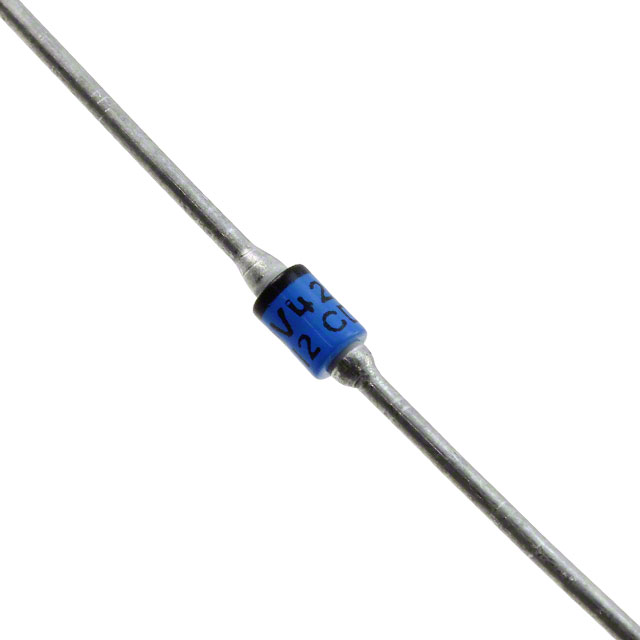

The JANTXV1N4249 is a single standard recovery rectifier diode manufactured by Microchip Technology. It features a maximum repetitive peak reverse voltage of 1000 V and an average forward rectified current of 1 A. The device exhibits a maximum forward voltage drop of 1.3 V at rated current and a maximum reverse leakage current of 1 µA. Its typical reverse recovery time is 5 µs, with a maximum surge current capability of 25 A. The component is housed in an axial through-hole package (A-Package-2) and is designed for robust operation within a temperature range extending from -65°C to +175°C.

Single Diodes Feature Summary

• High power density design suitable for demanding industrial environments
• Low latency performance characteristics for efficient switching applications
• Robust construction ensuring reliability in harsh operational conditions

Single Diodes Applications

• Industrial power supply circuits
• General purpose rectification tasks
• Harsh environment electronic systems

Single Diodes Procurement Notes

Verify the specific JAN grade and suffix requirements against your system specifications before procurement. Confirm that the axial leaded package aligns with your PCB layout constraints. Ensure that the thermal management strategy accommodates the specified operating temperature range. Validate that the 1 A current rating meets the peak load demands of the target application circuit without exceeding limits.

Single Diodes Selection Notes

Select this component when high voltage isolation and reliable standard recovery characteristics are required. Consider the axial package form factor for through-hole mounting processes. Evaluate the 1000 V reverse voltage rating against the maximum transient voltages present in the circuit. Assess the 5 µs recovery time suitability for the intended switching frequency to ensure minimal reverse recovery losses.

Single Diodes Part Context

This part belongs to the 1N4249 series of general-purpose rectifiers produced under military-grade specifications by Microchip Technology. The JAN prefix indicates compliance with specific quality and screening standards. It serves as a high-reliability alternative to commercial variants, offering enhanced durability for aerospace and defense applications where consistent performance under stress is critical.

Single Diodes Replacement Considerations

Direct substitutes include the JAN1N4249 and other 1N4249 variants with matching electrical ratings. Verify package compatibility and lead configuration when swapping components. Ensure that any replacement maintains the same voltage and current capabilities to preserve circuit integrity.
