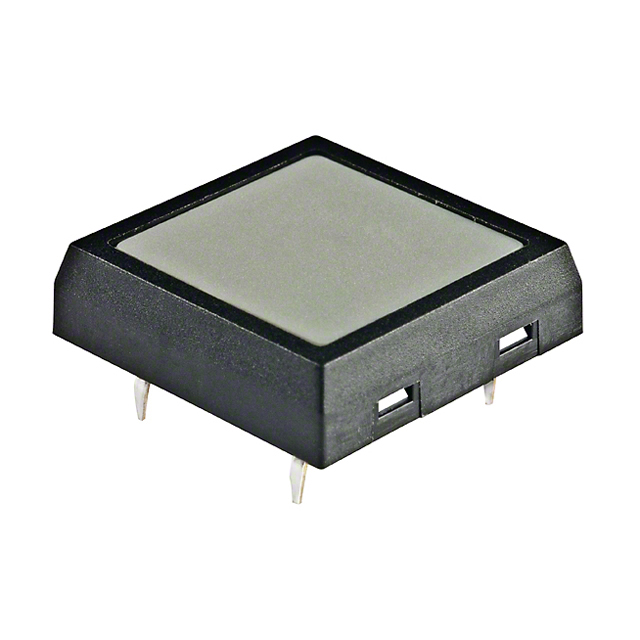

JF15SP1H

JF15SP1H is listed in the Tactile Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TACTILE SPST-NO 0.05A 24V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for JF15SP1H

• Description：SWITCH TACTILE SPST-NO 0.05A 24V
• Series：JF
• Mfr：NKK Switches
• Package：Tray
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 24VDC
• Actuator Type：Square Button
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：5.08mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：17.70mm x 17.70mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：300gf
• Ingress Protection：-
• Features：Process Sealed
• Operating Temperature：-25°C ~ 85°C

Tactile Switches datasheet and documents for JF15SP1H
