KCZ1210DH800HRTD25

Common Mode Chokes Overview

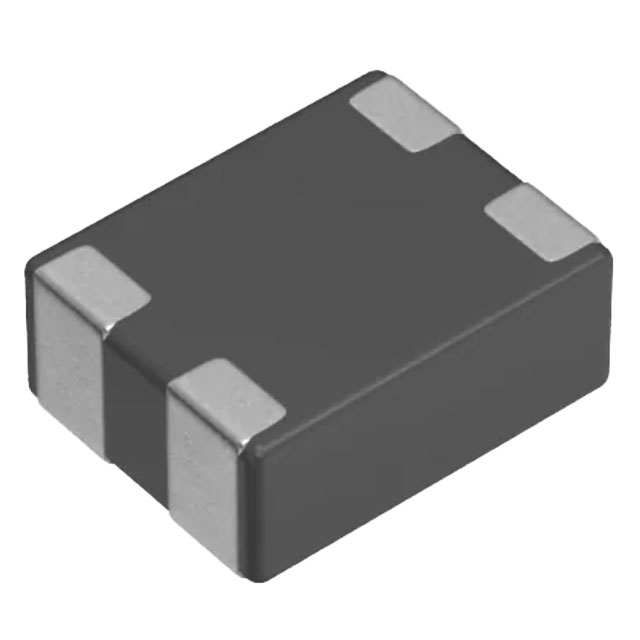

The KCZ1210DH800HRTD25 is a surface-mount common mode filter choke manufactured by TDK Corporation. It features an impedance of 80 Ohms with a tolerance of 25% at a test frequency of 100 MHz. The component supports a maximum DC current of 100 mA and has a maximum DC resistance of 3 Ohms. It operates within a temperature range of -55°C to +125°C and meets AEC-Q200 qualification standards. The physical dimensions are 1.25 mm in length, 1.00 mm in width, and 0.50 mm in height, corresponding to the 0403 (1210 metric) package.

Common Mode Chokes Feature Summary

• High-impedance multilayer construction for effective noise suppression
• AEC-Q200 qualified for automotive reliability requirements
• Shielded design to minimize electromagnetic interference

Common Mode Chokes Applications

• Automotive signal line protection
• Data bus filtering in vehicle electronics
• Common mode noise suppression in compact PCB layouts

Common Mode Chokes Procurement Notes

Verify the specific suffix HR against official TDK documentation to confirm material composition and thermal characteristics. Ensure the procurement channel provides valid traceability records. Confirm that the delivered components match the AEC-Q200 qualification status specified in the datasheet. Check for any updates to the RoHS compliance status prior to finalizing orders.

Common Mode Chokes Selection Notes

Select this component when high impedance is required for signal lines in space-constrained automotive applications. The 100 mA rated current limits suitability for power lines; verify load requirements against this limit. The wide operating temperature range supports harsh environments. Compare physical dimensions against board space constraints before integration.

Common Mode Chokes Part Context

This part belongs to the KCZ-DH series of high-impedance multilayer common mode filters from TDK. The series is designed for high-frequency noise suppression in digital signal lines. The KCZ variant typically offers enhanced performance compared to standard MCZ series parts, specifically tailored for demanding automotive electronic control units and infotainment systems requiring robust EMI mitigation.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-referencing requires consulting official TDK replacement guides or distributor compatibility matrices.
