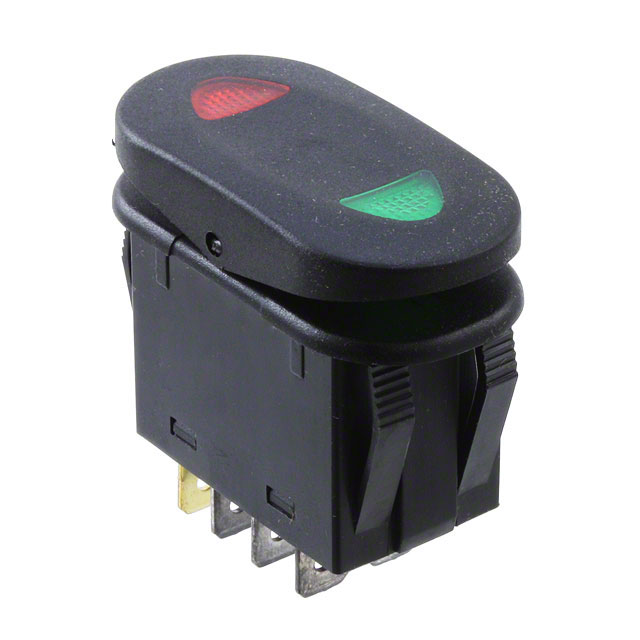

Rocker Switches KMD3CMB8BBBRG2 product image

KMD3CMB8BBBRG2

$13.16
  • Description：SWITCH ROCKER DPDT 20A 125V
  • Series：KM
  • Mfr：ZF Electronics
  • Package：Box

SKU:99a83eda7a84 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

KMD3CMB8BBBRG2 is listed in the Rocker Switches range at ChipApex. The manufacturer field lists ZF Electronics. Its product description is SWITCH ROCKER DPDT 20A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for KMD3CMB8BBBRG2

  • Description：SWITCH ROCKER DPDT 20A 125V
  • Series：KM
  • Mfr：ZF Electronics
  • Package：Box
  • Mounting Type：Panel Mount, Snap-In
  • Circuit：DPDT
  • Switch Function：On-Off-On
  • Current Rating (Amps)：20A (AC)
  • Voltage Rating - AC：125 V
  • Voltage Rating - DC：-
  • Actuator Type：Flat - Illuminated
  • Color - Actuator/Cap：Black
  • Actuator Marking：No Marking
  • Illumination Type, Color：LED, Green/Red
  • Illumination Voltage (Nominal)：14 VDC
  • Termination Style：Quick Connect - 0.250" (6.3mm)
  • Ingress Protection：IP56 - Dust Protected, Water Resistant
  • Features：-
  • Panel Cutout Dimensions：Rectangular - 36.60mm x 21.20mm
  • Operating Temperature：-20°C ~ 85°C
  • Approval Agency：-

Rocker Switches datasheet and documents for KMD3CMB8BBBRG2

KMD3CMB8BBBRG2
