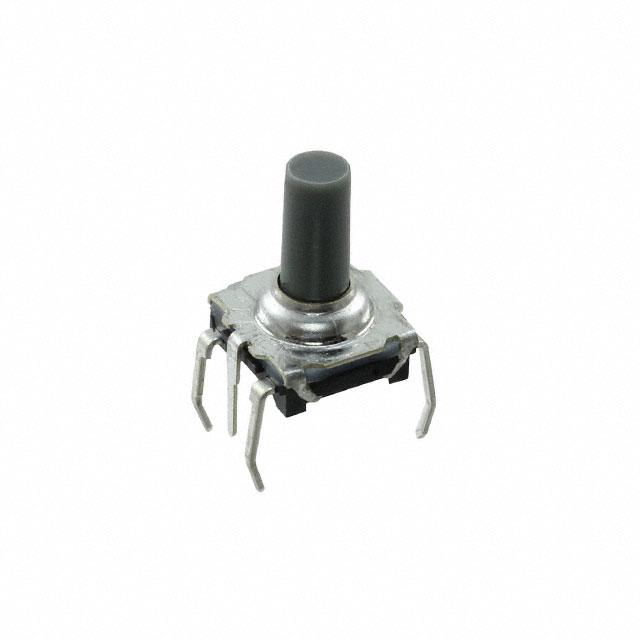

KSL1M211 LFTR

KSL1M211 LFTR is listed in the Tactile Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TACTILE SPST-NO 0.05A 32V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for KSL1M211 LFTR

• Description：SWITCH TACTILE SPST-NO 0.05A 32V
• Series：KSL
• Mfr：C&K
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 32VDC
• Actuator Type：Standard
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：4.70mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：7.40mm x 7.40mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：130gf
• Ingress Protection：IP60 - Dust Tight
• Features：Grounding Pin
• Operating Temperature：-40°C ~ 85°C

Tactile Switches datasheet and documents for KSL1M211 LFTR
