KTC2110AECAA-D-TR

Voltage Regulators - DC DC Switching Regulators Overview

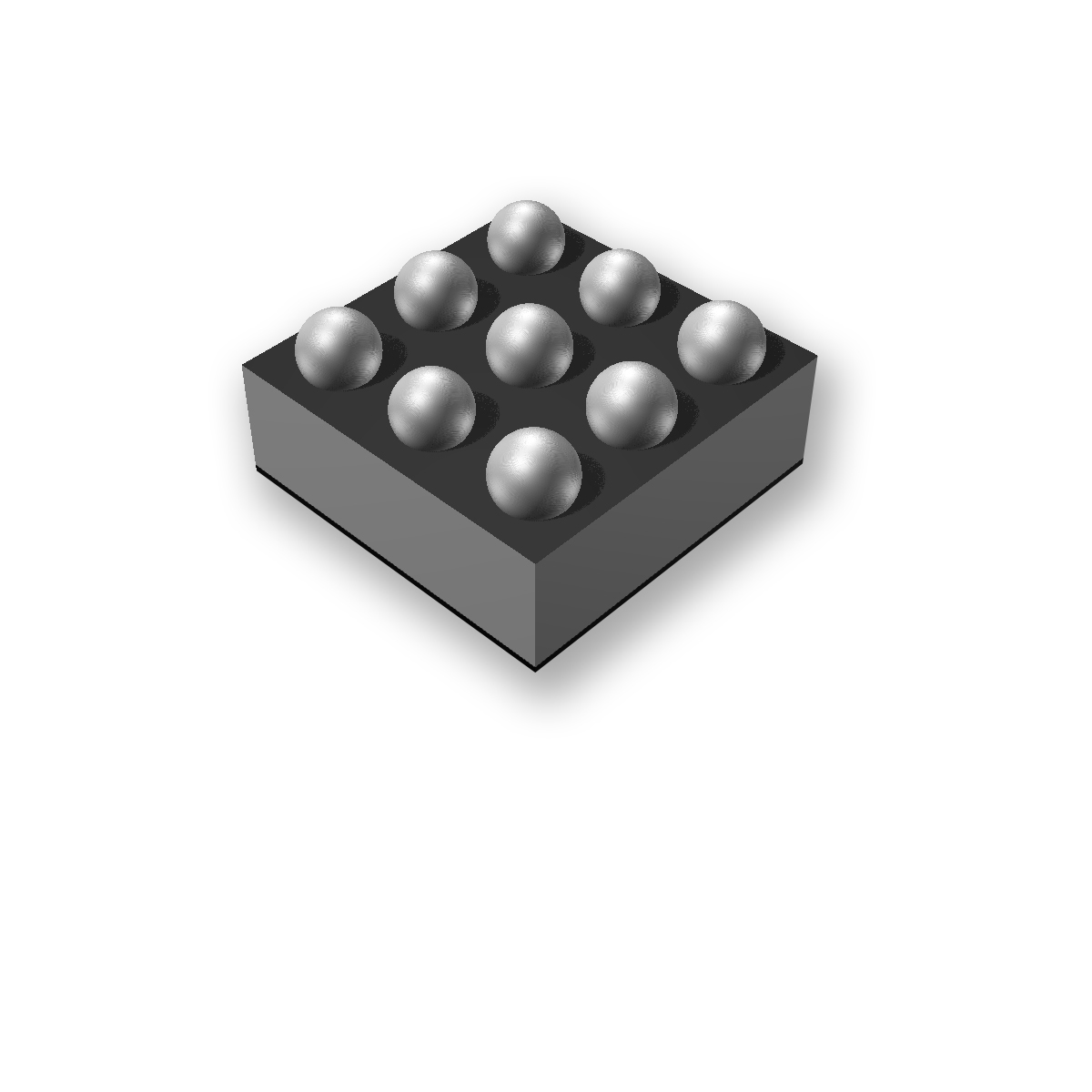

The KTC2110AECAA-D-TR is a synchronous boost converter manufactured by Kinetic Technologies, designed for high-efficiency power management in space-constrained applications. This switching voltage regulator operates with an input voltage range of 2.5 V to 5.5 V and delivers a fixed output voltage of 5 V at up to 1 A output current. It features a 3 MHz switching frequency, enabling the use of compact external components. The device exhibits a low quiescent current of 55 uA during operation and reduces to 1 uA in shutdown mode. It is housed in a WLCSP-9 package suitable for surface mount installation and functions within a temperature range of -40°C to +85°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Synchronous boost topology ensures high conversion efficiency across varying load conditions.
• Integrated shutdown control minimizes power consumption when the system is inactive.
• High switching frequency allows for significant reduction in passive component size.

Voltage Regulators - DC DC Switching Regulators Applications

• Portable battery-powered consumer electronics
• Mobile communication devices requiring efficient voltage step-up
• IoT sensors and modules with strict power budget constraints

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the complete part number against official Kinetic Technologies documentation to ensure correct suffix alignment. Confirm that the WLCSP-9 package variant matches your PCB footprint requirements. Check RoHS compliance status through the manufacturer's certified datasheet rather than distributor summaries. Ensure storage and handling procedures adhere to moisture sensitivity levels specified for wafer-level chip-scale packages.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact solution is required for stepping up low battery voltages to a stable 5 V rail. The 3 MHz frequency is optimal for minimizing inductor and capacitor footprints compared to lower-frequency alternatives. Consider the 1 uA shutdown current if standby power drain is critical for battery life. Validate thermal performance within the -40°C to +85°C operating range for your specific enclosure design.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the Kinetic Technologies family of low IQ synchronous boost converters. It is categorized under PMIC - Power Management ICs and specifically Switching Voltage Regulators. The product utilizes a WLCSP-9 package, distinguishing it from larger QFN or SOIC variants in the same functional category.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Consult official Kinetic Technologies substitution guides for verified equivalents. Cross-reference pinouts and electrical parameters carefully when considering competitors. Do not assume mechanical compatibility between different package types without verifying the footprint dimensions.
