LB P4SG-S2U1-35-45-20-S

LED Indication - Discrete Overview

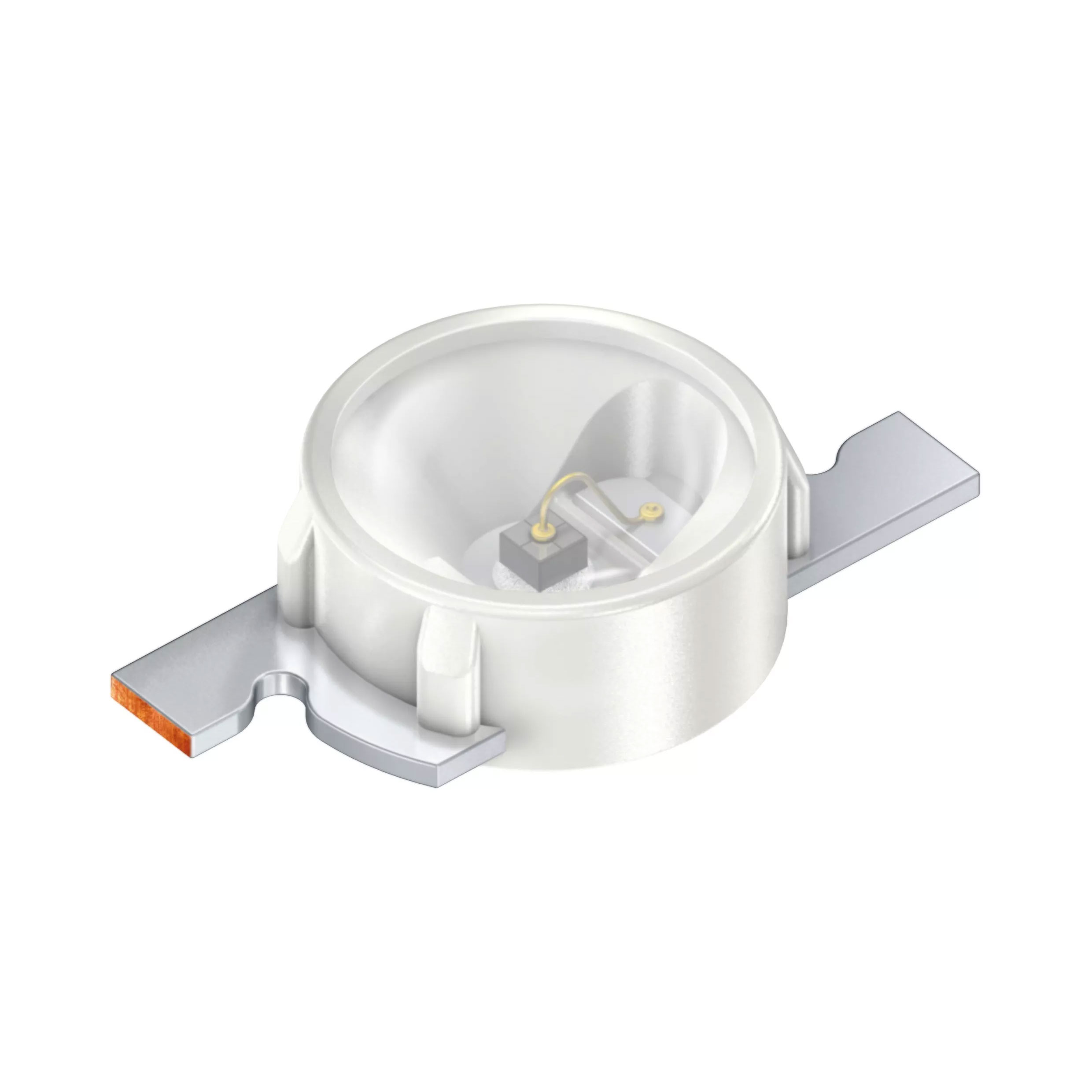

The LB P4SG-S2U1-35-45-20-S is a blue surface-mount LED from the PointLED series by ams OSRAM. It emits light at a main wavelength of 470nm with a forward voltage of 3V. The component utilizes a 2-SMD, flat leads package configuration. Key electrical parameters include a maximum forward current rating and specific luminous intensity characteristics suitable for discrete indication applications.

LED Indication - Discrete Feature Summary

• Blue emission within the PointLED discrete indicator series
• Surface-mount technology with flat lead configuration
• Clear lens design for standard optical transmission

LED Indication - Discrete Applications

• Discrete electronic status indication
• Panel mount indicator lights
• General purpose visual signaling in control equipment

LED Indication - Discrete Procurement Notes

Verify the exact suffix against the manufacturer's latest datasheet to confirm pinout and binning specifications. Ensure compatibility with automated placement equipment due to the flat lead package style. Cross-reference thermal management requirements with system design constraints. Confirm RoHS compliance status through official documentation prior to integration into regulated assemblies.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a compact blue indicator with low profile dimensions. The 2-SMD flat lead format facilitates space-constrained PCB layouts. Evaluate optical intensity requirements against the specific luminous output data provided in the technical datasheet. Consider operating temperature ranges relative to the intended environmental conditions.

LED Indication - Discrete Part Context

This part belongs to the PointLED family, designed for high-reliability discrete indication tasks. It represents a standard solution for visual feedback in consumer electronics and industrial control panels. The series emphasizes consistent color performance and mechanical stability for mass production environments.

LED Indication - Discrete Replacement Considerations

Consult the official cross-reference guide for direct equivalents. Verify dimensional tolerances and spectral consistency when substituting with alternative blue LEDs from other manufacturers.
