LBAA0QB1SJ-296

RF Transceiver Modules And Modems Overview

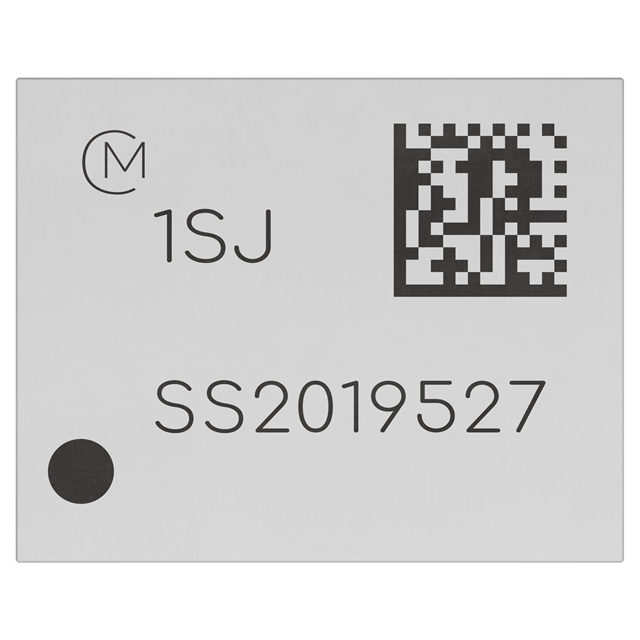

The Murata LBAA0QB1SJ-296 is a Sub-GHz LoRaWAN modem module designed for IoT applications. It operates within the 868 MHz and 915 MHz frequency bands, supporting long-range communication capabilities. The module features a UART interface for seamless integration with host microcontrollers. It functions on a 3.3 V supply voltage, with an operating range from 2.2 V to 3.6 V. Key electrical parameters include a maximum output power of 21.5 dBm, a transmission current of 118 mA, and a receive current of 15.5 mA. The physical dimensions are 10 mm x 8 mm x 1.6 mm, suitable for surface mount installation.

RF Transceiver Modules And Modems Feature Summary

• Integrated LoRaWAN modem functionality combining RF transceiver and protocol handling
• Supports external antenna connection for flexible deployment
• UART interface enables straightforward connectivity with standard microcontrollers

RF Transceiver Modules And Modems Applications

• Smart metering infrastructure development
• Industrial sensor network implementation
• Agricultural monitoring system prototyping

RF Transceiver Modules And Modems Procurement Notes

Verify that the specific part number matches the required regional frequency band configuration before ordering. Confirm that the external antenna connector type aligns with your mechanical design constraints. Ensure that the host system provides adequate power delivery to support peak transmission currents without voltage droop during operation.

RF Transceiver Modules And Modems Selection Notes

Choose this module when integrated LoRaWAN protocol support is required to reduce software complexity. Select it for designs needing a compact form factor with established RF performance characteristics. Consider it for applications requiring reliable sub-GHz communication in industrial or outdoor environments where long-range coverage is essential.

RF Transceiver Modules And Modems Part Context

This component belongs to the Murata Type 1SJ series of wireless modules. It represents an evolution in integrated modem solutions, combining RF front-end and baseband processing into a single SMD package. The series targets developers seeking certified compliance and simplified integration pathways for global IoT deployments.

RF Transceiver Modules And Modems Replacement Considerations

LBAA0QB1SJ-295

RF Transceiver Modules And Modems FAQ

What interface does the module use for communication?

The module utilizes a UART interface for data exchange with the host microcontroller.

Is an antenna included with the module?

No, the module requires an external antenna connection; antennas are not included.
