LBAD0XX1SC-005

RF Transceiver Modules And Modems Overview

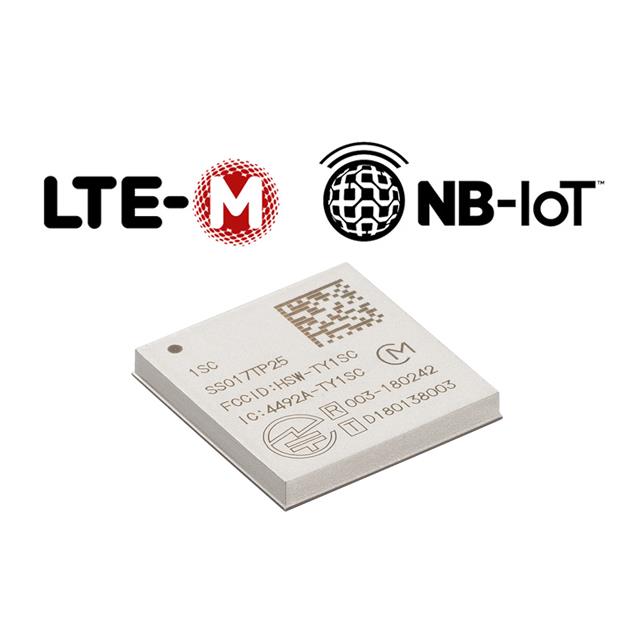

The Murata LBAD0XX1SC-005 is a compact LTE Cat M1 and NB-IoT cellular module designed for global IoT applications. It operates within frequency bands of 699 MHz to 960 MHz and 1.71 GHz to 2.17 GHz, delivering a maximum output power of 23 dBm. The module features an UART interface and requires a supply voltage between 2.2 V and 4.35 V. Electrical characteristics include a transmission current of 400 mA and a reception current of 90 mA. Physical dimensions are 11.4 mm x 11.1 mm x 1.4 mm, with an operating temperature range from -40°C to +85°C.

RF Transceiver Modules And Modems Feature Summary

• Supports NTN (Non-Terrestrial Network) capabilities for enhanced connectivity options
• Integrates GPS/GNSS functionality for precise location tracking services
• Includes an integrated SIM solution to simplify device design and security
• Features OpenMCU support allowing for flexible application processing

RF Transceiver Modules And Modems Applications

• Smart metering and utility infrastructure monitoring
• Asset tracking and logistics management systems
• Industrial IoT sensor networks requiring global coverage
• Wearable devices and personal safety trackers

RF Transceiver Modules And Modems Procurement Notes

Verify specific regional certification requirements before deployment, as the module supports multiple global bands. Confirm antenna configuration compatibility with your system design, as antennas are not included. Ensure power supply stability meets the specified voltage and current thresholds during peak transmission. Check moisture sensitivity handling procedures due to the component's classification. Validate firmware versions against your network operator's specifications for optimal performance.

RF Transceiver Modules And Modems Selection Notes

Choose this module when minimal form factor is critical alongside global regulatory compliance. It is suitable for designs requiring integrated positioning without external GNSS chips. Consider the UART interface constraints if high-speed data throughput is required. Evaluate the 23 dBm output power against link budget calculations for your specific environment. Assess thermal management needs given the small surface area and operating temperature limits.

RF Transceiver Modules And Modems Part Context

This component belongs to Murata's Type 1SC series, recognized as one of the smallest certified Cat M1/NB-IoT modules available. The series emphasizes global certification to facilitate worldwide deployment. The LBAD0XX1SC-005 variant specifically integrates additional features like NTN support and internal memory, distinguishing it from basic variants in the same family while maintaining identical physical dimensions.

RF Transceiver Modules And Modems Replacement Considerations

Direct substitutes within the Type 1SC family may exist with different memory or feature configurations. Verify pin-to-pin compatibility and software driver availability when considering alternative part numbers. Ensure that any replacement maintains the required 23 dBm output power and global band support for your target markets.
