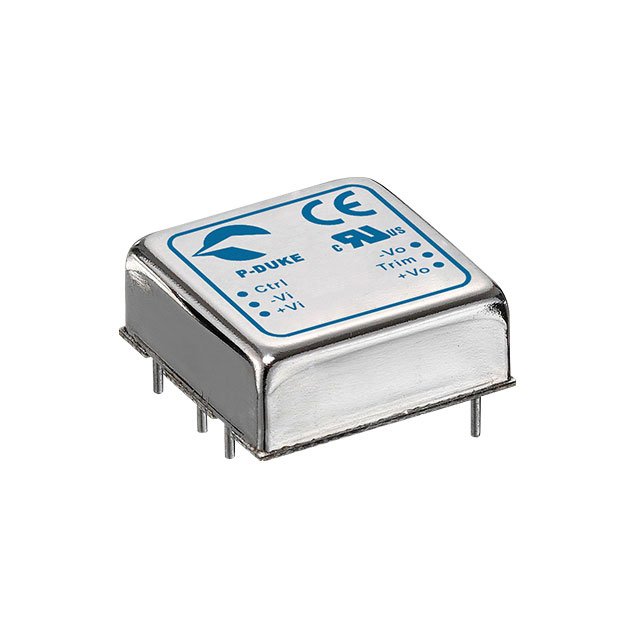

LCD20-12S05

LCD20-12S05 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5V 20W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for LCD20-12S05

• Description：DC DC CONVERTER 5V 20W
• Series：LCD20 (20W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：18V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：4A
• Power (Watts)：20 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote On/Off
• Operating Temperature：-40°C ~ 101°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：CB, CE, cURus
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for LCD20-12S05
