LCF160804A750TG

Common Mode Chokes Overview

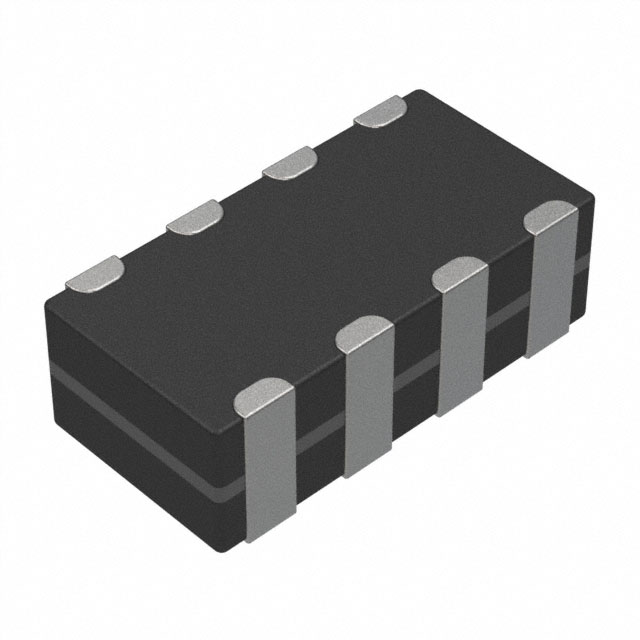

The LCF160804A750TG is a surface mount common mode choke manufactured by Littelfuse Inc. It features four lines of filtering capability with an impedance of 75 Ohms at 100 MHz and a tolerance of 25%. The component supports a maximum DC current of 100 mA and has a maximum DC resistance of 6 Ohms. Its physical dimensions are 1.60 mm in length and 0.80 mm in width, with a height of 0.5 mm and a lead spacing of 0.4 mm. The device operates within a minimum temperature range of -40 C.

Common Mode Chokes Feature Summary

• High speed differential line filter design for signal integrity
• Compact surface mount package suitable for space-constrained layouts
• RoHS compliant construction

Common Mode Chokes Applications

• Signal line filtering in electronic circuits
• Common mode noise suppression in high-speed data interfaces

Common Mode Chokes Procurement Notes

Verify the specific revision status as some sources indicate this part may be obsolete or discontinued. Confirm availability through authorized distributors and check for valid replacement components if production continuity is required. Ensure the ordering suffix matches the exact specification needed for your design.

Common Mode Chokes Selection Notes

Select this component when a compact, four-line common mode choke is required for high-speed differential signals. The 75 Ohm impedance at 100 MHz provides specific attenuation characteristics. Verify that the 100 mA current rating meets the operational requirements of the target circuit without saturation.

Common Mode Chokes Part Context

This component belongs to the LCF series of common mode chokes from Littelfuse. These filters are engineered for high-frequency noise suppression in surface mount applications. The series typically offers various impedance and current ratings to suit different signal line protection needs.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for current equivalent offerings.
