LCF300806A750TG

Common Mode Chokes Overview

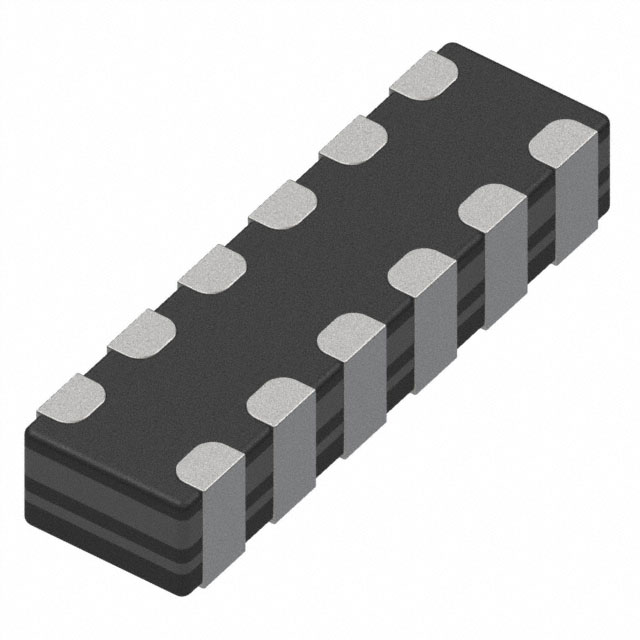

The Littelfuse LCF300806A750TG is a surface-mount common mode choke designed for high-speed differential line filtering. It features a 3008 package with six lines, providing 75 Ohms impedance at 25% tolerance and a maximum DC resistance of 6 Ohms. The component supports a maximum DC current of 100 mA and operates within a temperature range of -40°C to +85°C.

Common Mode Chokes Feature Summary

• Six-line configuration for multi-channel signal integrity
• High-speed differential line filtering capability
• Surface-mount PCB installation

Common Mode Chokes Applications

• High-speed data interface protection
• Differential signal line noise suppression
• Common mode interference mitigation in compact electronics

Common Mode Chokes Procurement Notes

Verify the obsolete lifecycle status before procurement planning. Confirm that the 3008 package dimensions and pin spacing meet the target PCB layout requirements. Ensure the 100 mA current rating aligns with the operational load to prevent saturation or thermal issues during design validation.

Common Mode Chokes Selection Notes

Select this component when six independent channels require common mode noise suppression in a minimal footprint. The 75 Ohm impedance targets specific high-speed signaling standards. Verify that the 6 Ohm DC resistance does not introduce excessive voltage drop for the application's power budget.

Common Mode Chokes Part Context

This part belongs to the LCF series of common mode chokes from Littelfuse. It is specifically engineered for surface-mount applications requiring multi-line filtering. The 3008 case size indicates a compact form factor suitable for dense circuit board designs where space is constrained.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete lifecycle status, alternative components must be sourced through engineering evaluation rather than direct cross-reference lists.
