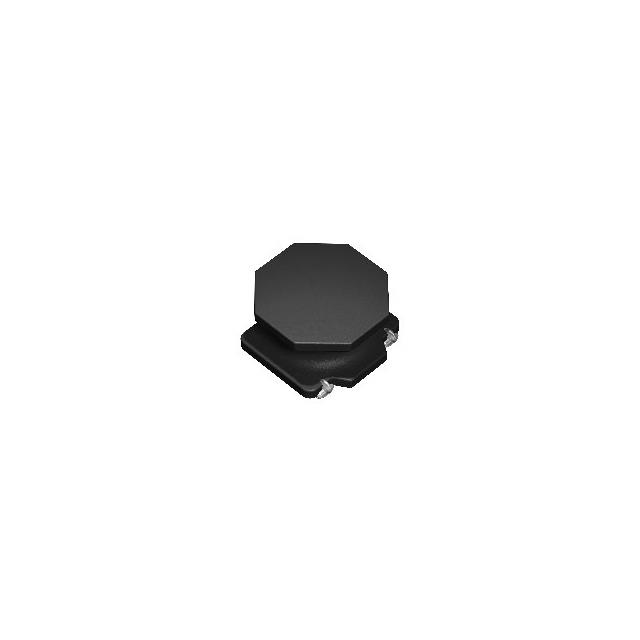

LLDND4040MKTR47MF

$0.25

Description：FIXED IND 470NH 4.6A 29 MOHM SMD
Series：LLDN
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)

SKU:5813cae46055 Category: Fixed Inductors Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LLDND4040MKTR47MF is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is FIXED IND 470NH 4.6A 29 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for LLDND4040MKTR47MF

Description：FIXED IND 470NH 4.6A 29 MOHM SMD
Series：LLDN
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)
Type：Wirewound
Material - Core：Metal
Inductance：470 nH
Tolerance：±20%
Current Rating (Amps)：4.6 A
Current - Saturation (Isat)：7.5A
Shielding：Unshielded
DC Resistance (DCR)：29mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：1616 (4040 Metric)
Supplier Device Package：1616
Size / Dimension：0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)：0.047" (1.20mm)
Features：-

Fixed Inductors datasheet and documents for LLDND4040MKTR47MF

LLDND4040MKTR47MF

Fixed Inductors Overview

The LLDND4040MKTR47MF is a surface-mount power inductor from the TAIYO YUDEN LLDN series. It features a wirewound metal core and semi-shielded construction within a 4x4x1 mm package. The nominal inductance is 0.47 uH with a tolerance of 20%. Key electrical parameters include a maximum DC current of 3.5 A, a saturation current of 4.5 A, and a maximum DC resistance of 28 mOhms. The component operates between -40°C and +125°C.

Fixed Inductors Feature Summary

Utilizes a wirewound metal core for high-current handling capabilities
Semi-shielded design minimizes electromagnetic interference
Low profile form factor suitable for space-constrained PCB layouts

Fixed Inductors Applications

Advanced driver assistance systems (ADAS)
Electronic control units (ECUs)
Automotive electronic equipment

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to confirm the intended packaging format and tape-and-reel specifications. Ensure that the selected variant matches the required automotive-grade reliability standards and RoHS compliance requirements for the target application environment.

Fixed Inductors Selection Notes

Select this component when a compact 4040 footprint is required alongside high saturation performance. The low DC resistance supports efficient power conversion, while the wide temperature range ensures stability in demanding automotive thermal conditions.

Fixed Inductors Part Context

This part belongs to the LLDN series of low-profile wound power inductors. The series is engineered to support the miniaturization and performance enhancement of electronic control units in modern automotive architectures.
