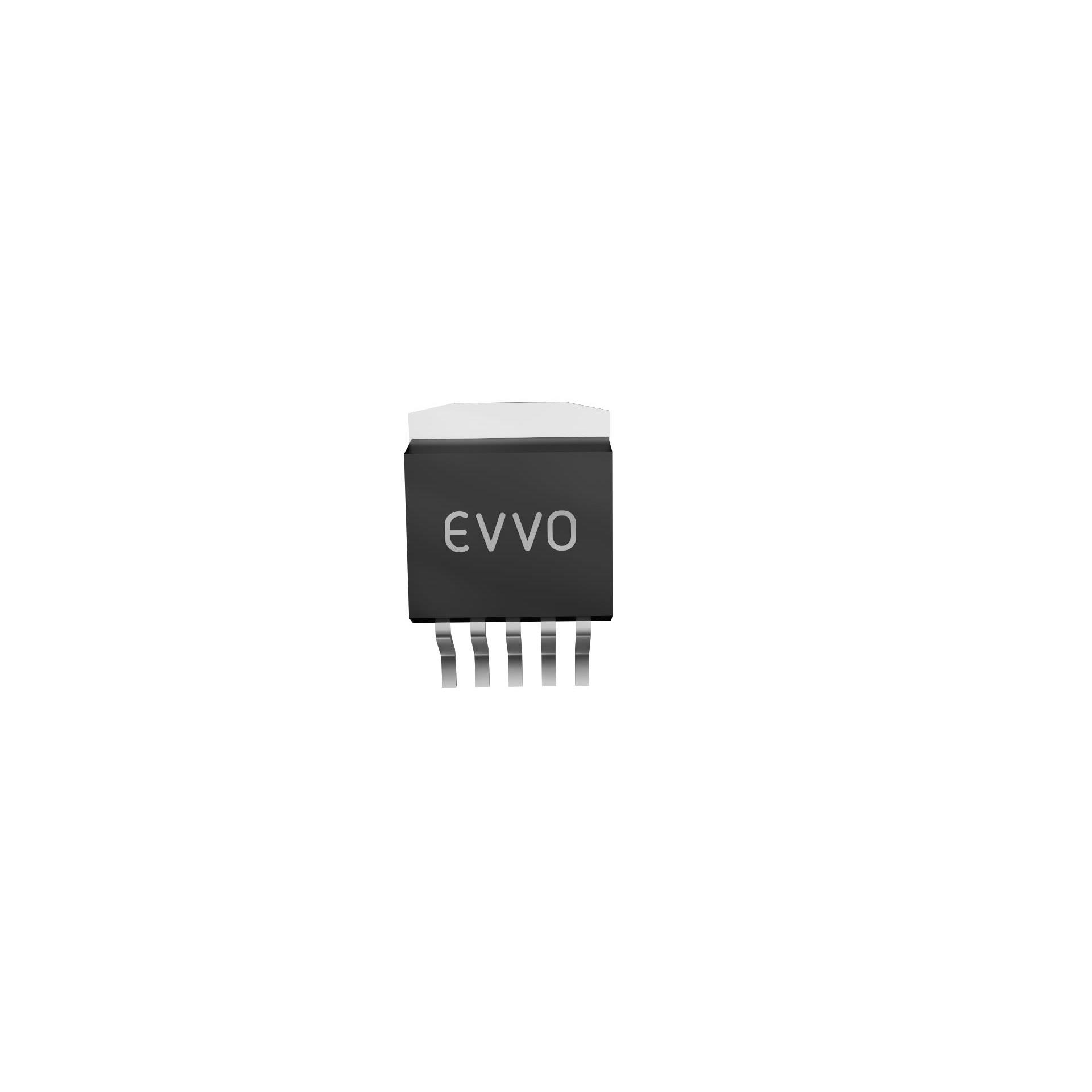

LM2575HVS-5.0-EV

$2.02

Description：IC REG BUCK 5V 2A TO263-5L
Series：LM2575HV
Mfr：EVVO
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1cc5e8a18e83 Category: Voltage Regulators - DC DC Switching Regulators Brand: EVVO

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LM2575HVS-5.0-EV is listed in the Voltage Regulators - DC DC Switching Regulators range at ChipApex. The manufacturer field lists EVVO. Its product description is IC REG BUCK 5V 2A TO263-5L. Review the specifications below when checking this part for your BOM.

Voltage Regulators - DC DC Switching Regulators specifications for LM2575HVS-5.0-EV

Description：IC REG BUCK 5V 2A TO263-5L
Series：LM2575HV
Mfr：EVVO
Package：Tape & Reel (TR),Cut Tape (CT)
Function：Step-Down
Output Configuration：Positive
Topology：Buck
Output Type：Fixed
Number of Outputs：1
Voltage - Input (Min)：-
Voltage - Input (Max)：57V
Voltage - Output (Min/Fixed)：5V
Voltage - Output (Max)：-
Current - Output：2A
Frequency - Switching：150kHz
Synchronous Rectifier：No
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Surface Mount
Package / Case：TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package：TO-263-5L
Grade：-
Qualification：-

Voltage Regulators - DC DC Switching Regulators datasheet and documents for LM2575HVS-5.0-EV

LM2575HVS-5.0-EV

Voltage Regulators - DC DC Switching Regulators Overview

The LM2575HVS-5.0-EV is a fixed-output step-down switching regulator manufactured by EVVO, belonging to the SIMPLE SWITCHER family. It provides a regulated 5.0 V output with a maximum load current of 1 A. The device supports an input voltage range up to 60 V and operates at a switching frequency of 52 kHz. It utilizes pulse-width modulation control and features thermal shutdown protection. The component is housed in a TO-263-5L surface-mount package and is rated for operation between -40°C and 125°C junction temperature.

Voltage Regulators - DC DC Switching Regulators Feature Summary

Integrated high-voltage power switch eliminates external component requirements
Fixed internal feedback network ensures stable output regulation
Thermal shutdown circuitry protects against overheating conditions

Voltage Regulators - DC DC Switching Regulators Applications

Point-of-load DC/DC conversion modules
Pre-regulation stages for linear regulators
Battery-powered equipment power supplies

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify manufacturer designation as EVVO rather than Texas Instruments when sourcing this specific variant. Confirm the suffix indicates the fixed 5.0 V output configuration. Ensure compatibility with TO-263-5L footprint requirements during procurement planning.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component for applications requiring a simple buck topology with high input voltage tolerance. The fixed 5.0 V output suits systems needing standard logic supply rails. Consider the 1 A current limit for moderate load demands without external heat sinking.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LM2575HV series of monolithic integrated circuits designed for easy-to-use step-down switching regulators. The HV designation indicates enhanced input voltage capability compared to standard variants. The EVVO branding suggests a specific manufacturing source within the broader SIMPLE SWITCHER product line.
