LM5150QRUMTQ1

DC DC Switching Controllers Overview

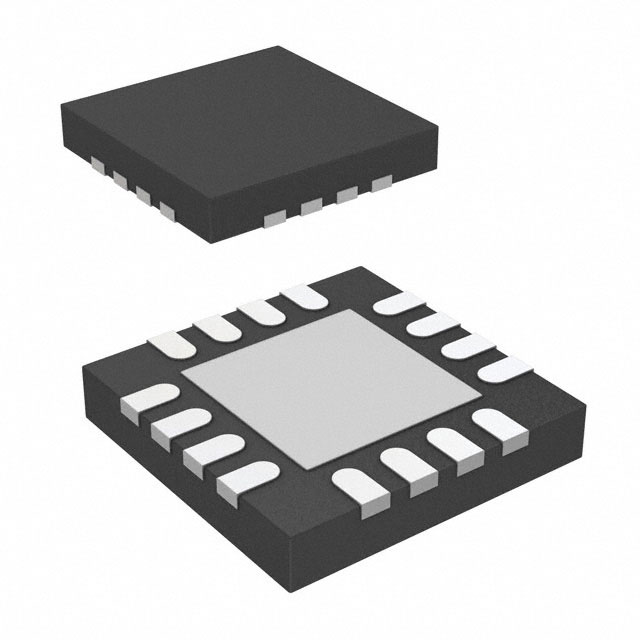

The LM5150QRUMTQ1 is an automotive-grade wide input voltage low IQ boost controller from Texas Instruments. It operates with a supply voltage range of 1.5V to 42V and supports switching frequencies between 220kHz and 2.3MHz. The device delivers up to 15A output current with adjustable duty cycles reaching 91.5%. It features a 16-WQFN package, AEC-Q100 qualification, and operates within a temperature range of -40°C to 150°C.

DC DC Switching Controllers Feature Summary

• Supports frequency synchronization for noise reduction in multi-phase systems
• Provides light load efficiency optimization through adaptive burst mode operation
• Includes adjustable current limit protection for robust system reliability

DC DC Switching Controllers Applications

• Automotive infotainment power distribution
• ADAS sensor power supplies
• Body control module auxiliary rails
• Telematics unit bias generation

DC DC Switching Controllers Procurement Notes

Verify the specific suffix 'RUMTQ1' matches the required 16-WQFN package and automotive grade designation. Confirm that the AEC-Q100 qualification aligns with your vehicle's thermal and reliability standards. Ensure the ordering part number corresponds exactly to the datasheet specifications to avoid pinout or functional mismatches during integration.

DC DC Switching Controllers Selection Notes

Select this component when a wide input voltage range up to 42V is required for automotive applications. Consider its low quiescent current capability for battery-sensitive designs. Evaluate the need for frequency synchronization if multiple converters operate in close proximity to minimize electromagnetic interference.

DC DC Switching Controllers Part Context

This device belongs to the LM5150-Q1 family of wide VIN boost controllers designed specifically for automotive environments. It complements other Texas Instruments power management solutions by offering high efficiency and compact packaging suitable for space-constrained electronic control units in modern vehicles.

DC DC Switching Controllers Replacement Considerations

LM51501QRUMTQ1 serves as a verified substitute within the same product family, sharing similar automotive qualifications and core functionality while maintaining compatibility with existing design architectures.
