LNA-40-06001800-35-20P

RF Amplifiers Overview

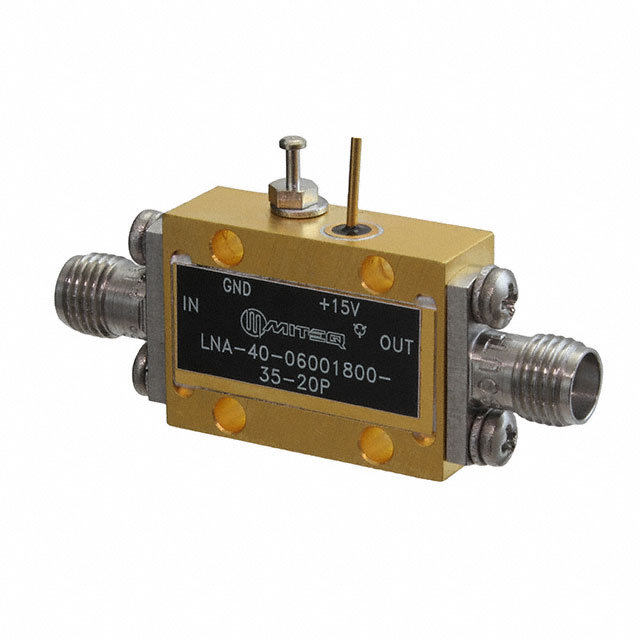

The LNA-40-06001800-35-20P is a low-noise amplifier module from the L3 Narda-MITEQ LNA series, designed for VSAT applications. It operates within a frequency range of 6 GHz to 18 GHz. The device provides a nominal gain of 40 dB with a noise figure of 3.5 dB. It delivers a P1dB output power of 20 dBm. The unit requires a 15 V DC supply voltage and draws a current of 400 mA. It is housed in a module package equipped with SMA connectors.

RF Amplifiers Feature Summary

• Provides high gain suitable for wideband VSAT signal processing
• Engineered for low noise performance in microwave frequencies
• Integrated module design with standard SMA interfaces

RF Amplifiers Applications

• VSAT communication systems
• Microwave receiver front ends
• Satellite ground station equipment

RF Amplifiers Procurement Notes

Verify the specific part number against official L3 Narda-MITEQ documentation to confirm electrical parameters and pinout compatibility. Ensure that the procurement channel provides valid manufacturer authorization or traceability records. Check for RoHS compliance status if required by project specifications. Confirm lead times and availability directly with authorized distributors as stock levels fluctuate.

RF Amplifiers Selection Notes

Select this component when a wide bandwidth covering 6 GHz to 18 GHz is required alongside moderate output power capabilities. The 40 dB gain and 3.5 dB noise figure make it appropriate for sensitive reception chains. Evaluate the 15 V power requirement and 400 mA current draw against available power supplies. Compare physical dimensions and SMA connector orientation against existing board layouts.

RF Amplifiers Part Context

This model belongs to the LNA series produced by L3 Narda-MITEQ, a manufacturer specializing in RF and microwave components. The company was formed through the merger of MITEQ and L3's Narda Microwave-East business. The product line focuses on durable and reliable solutions for military and commercial applications, including amplifiers, switches, and attenuators.

RF Amplifiers Replacement Considerations

Potential substitutes include other models from the same LNA series such as LNA-40-04001200-35-20P or LNA-40-00100800-40-20P. Verify that alternative part numbers match the required frequency range, gain, and power specifications before integration.
