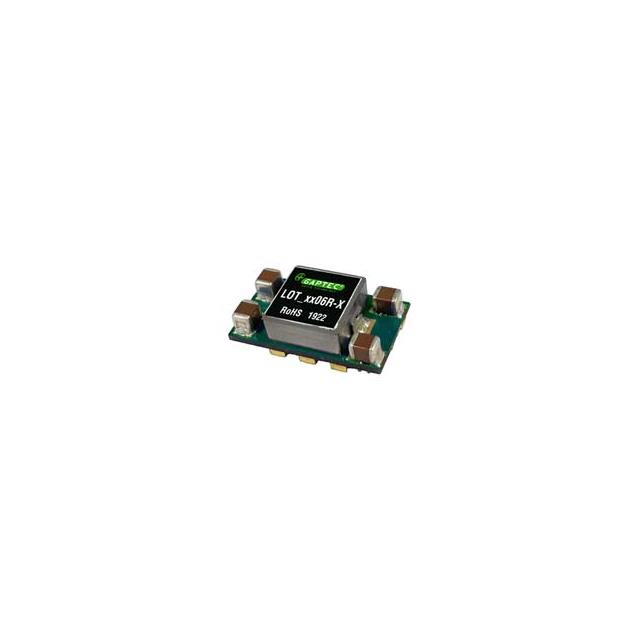

LOT_12-06R-P

LOT_12-06R-P is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC STEP DOWN REGULATORS. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for LOT_12-06R-P

• Description：DC-DC STEP DOWN REGULATORS
• Series：LOT_06R-X
• Mfr：GAPTEC Electronic
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8.3V
• Voltage - Input (Max)：14V
• Voltage - Output 1：0.75 ~ 5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：6A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：94%
• Mounting Type：Surface Mount
• Package / Case：5-SMD Module
• Size / Dimension：0.80" L x 0.45" W x 0.26" H (20.3mm x 11.4mm x 6.6mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for LOT_12-06R-P
