LPTC-V-1.7-2-60

Common Mode Chokes Overview

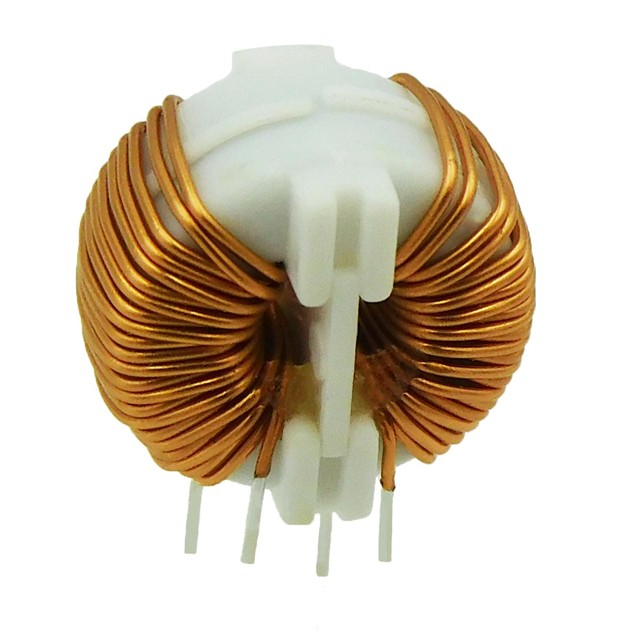

The Signal Transformer LPTC-V-1.7-2-60 is a toroidal common mode choke designed for power line filtering applications. It features an inductance of 1.7 mH at 1 kHz and supports a maximum DC current of 2 A with a maximum DC resistance of 60 mOhms. The component utilizes a ferrite core material and is constructed for through-hole mounting. Physical dimensions include a width of 13 mm, a diameter of 18 mm, and a lead diameter of 0.5 mm. The unit operates as a two-channel filter suitable for noise countermeasure implementations.

Common Mode Chokes Feature Summary

• Toroidal ferrite core construction for efficient magnetic coupling
• Two-channel design for dual-line common mode noise suppression
• Through-hole termination style for secure board integration

Common Mode Chokes Applications

• Power supply input filtering
• Home appliance noise mitigation
• General electronic equipment EMI reduction

Common Mode Chokes Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with your circuit requirements. Confirm that the 2 A current rating and 1.7 mH inductance meet your system's electrical specifications. Check for any RoHS compliance status updates or alternative package options if necessary. Ensure proper handling procedures are followed during installation to maintain component integrity.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise suppression on power lines. The 1.7 mH inductance provides effective filtering at 1 kHz, while the 2 A current rating accommodates moderate load currents. Consider the through-hole mounting requirement and physical footprint of 13 mm by 18 mm during PCB layout planning. Evaluate the 60 mOhm DC resistance impact on overall system efficiency.

Common Mode Chokes Part Context

This component belongs to the LPTC-V series of toroidal common mode chokes manufactured by Signal Transformer. The series is engineered for robust performance in various noise countermeasure applications. These chokes are characterized by their compact toroidal geometry and high saturation current capabilities, making them suitable for dense electronic assemblies where space efficiency and electromagnetic interference reduction are critical design factors.

Common Mode Chokes Replacement Considerations

Consult official distributor databases for cross-referenced parts with matching inductance, current rating, and form factor. Verify that any substitute component maintains the same through-hole mounting configuration and ferrite core characteristics to ensure equivalent noise suppression performance.
