LPTC-V-4.25-1-150

Common Mode Chokes Overview

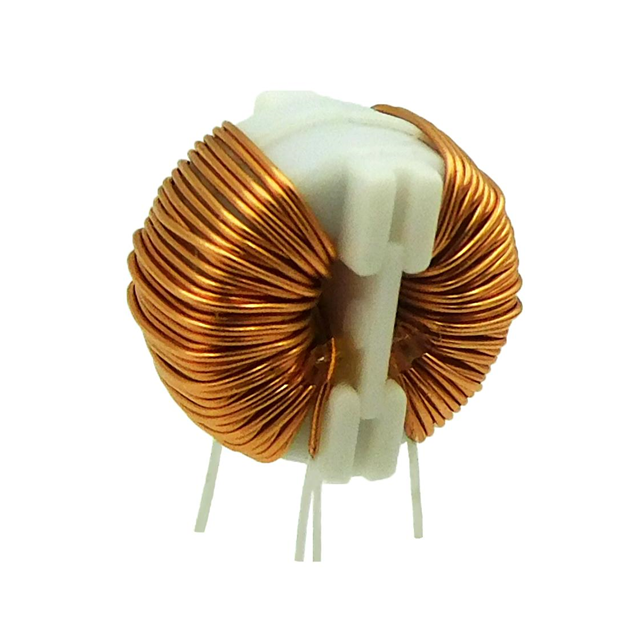

The Signal Transformer LPTC-V-4.25-1-150 is a common mode choke belonging to the LPTC-V series of toroidal components. It features a nominal inductance of 4.25 mH measured at a frequency of 1 kHz and supports a current rating of 1 A. The device utilizes a through-hole mounting configuration with two lines. Its maximum DC resistance is specified as 150 mOhm. This component is designed for electromagnetic interference suppression in electronic circuits requiring robust common mode noise reduction capabilities.

Common Mode Chokes Feature Summary

• Toroidal core construction for efficient magnetic flux containment
• Dual-line design for effective common mode noise suppression
• Through-hole termination style for secure PCB integration

Common Mode Chokes Applications

• Power supply input filtering
• Data line noise suppression
• Electromagnetic interference mitigation in industrial equipment

Common Mode Chokes Procurement Notes

Verify the specific datasheet version from Signal Transformer or authorized distributors to confirm RoHS compliance status and environmental certifications. Ensure that the 1 A current rating and 150 mOhm DC resistance align with the thermal and electrical requirements of the target circuit design before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a toroidal common mode choke with a 4.25 mH inductance at 1 kHz is required. The 1 A current handling capacity and low DC resistance make it suitable for applications where minimal voltage drop across the filter is critical. Confirm that the through-hole package fits the available PCB layout constraints.

Common Mode Chokes Part Context

This part belongs to the LPTC-V series, which represents an expansion of Signal Transformer's toroidal common mode choke family. The series focuses on providing reliable noise filtering solutions with standardized electrical parameters. The LPTC-V-4.25-1-150 specifically addresses needs for moderate inductance values in compact through-hole form factors.

Common Mode Chokes Replacement Considerations

Consult official Signal Transformer documentation for verified substitute part numbers within the LPTC-V series or other compatible families. Cross-reference inductance, current rating, and physical dimensions to ensure functional equivalence without modifying the existing circuit design.
