LSIC2SD120A20A

Single Diodes Overview

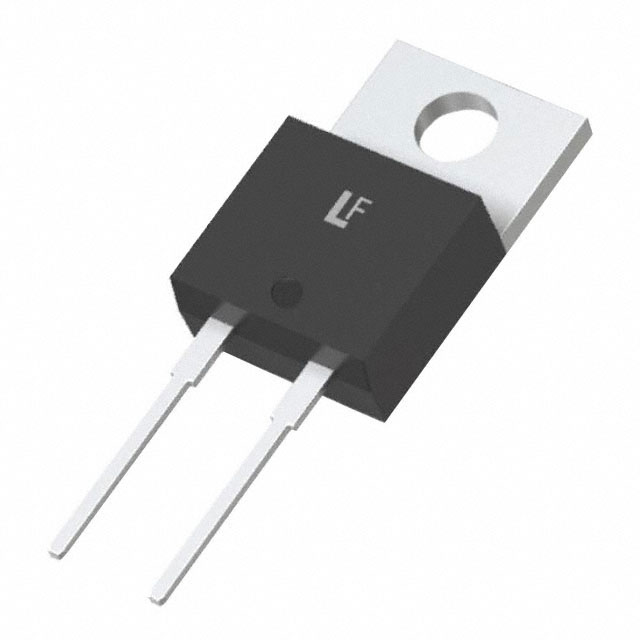

The LSIC2SD120A20A is a Silicon Carbide (SiC) Schottky diode manufactured by Littelfuse Inc. It features a 1200 V repetitive reverse voltage rating and a 54.5 A average rectified forward current capability. The device utilizes a TO-220-2L through-hole package configuration. Key electrical parameters include a maximum forward voltage of 1.5 V and a peak non-repetitive forward surge current of 80 A. The component supports a maximum operating junction temperature of +175°C and exhibits a negative temperature coefficient for safe parallel operation.

Single Diodes Feature Summary

• Positive temperature coefficient ensures safe operation and facilitates easy parallel connection without current imbalance issues.
• Extremely fast switching behavior that remains unaffected by temperature variations, significantly reducing switching losses compared to silicon bipolar diodes.
• High surge current capability provides robust protection against transient overcurrent events during operation.

Single Diodes Applications

• Electric vehicle charging stations
• Solar inverters
• Switched-mode power supplies

Single Diodes Procurement Notes

Verify the specific suffix 'A' in the part number LSIC2SD120A20A against official Littelfuse documentation to confirm pinout and thermal characteristics. Ensure the procurement source provides valid RoHS compliance certificates. Cross-reference the datasheet revision date to guarantee compatibility with current design specifications and safety standards.

Single Diodes Selection Notes

Select this component when high-temperature stability and low switching loss are critical requirements. The TO-220-2L package offers a balance between thermal performance and mounting simplicity for through-hole applications. Consider the 175°C junction temperature limit for designs requiring extended operational life under high-stress conditions.

Single Diodes Part Context

This device belongs to the LSIC2SD GEN2 SiC Schottky diode family from Littelfuse. The second-generation series expands upon previous offerings with improved efficiency and reliability. The product line includes various voltage and current ratings across multiple packages, targeting high-power conversion applications where silicon limitations are prohibitive.

Single Diodes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify direct replacements only through official Littelfuse cross-reference tools or authorized distributor databases to ensure parameter matching.
