LSQPB201210T1R0M06

Fixed Inductors Overview

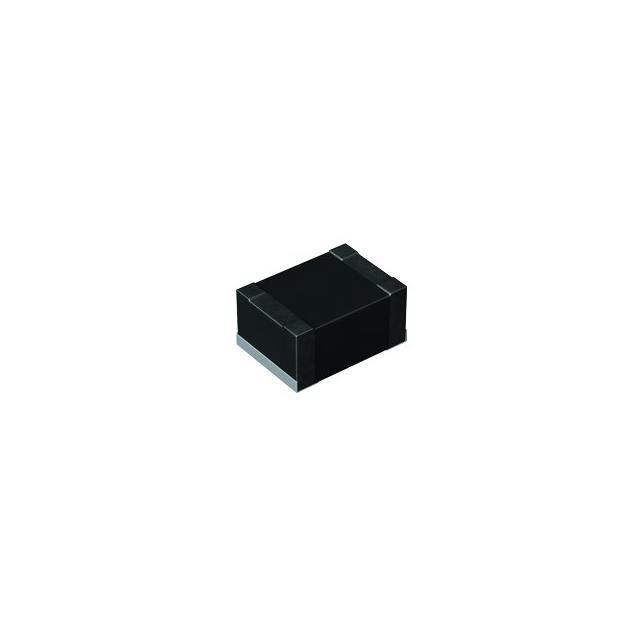

The LSQPB201210T1R0M06 is a semi-shielded wirewound ferrite power inductor from Taiyo Yuden, designed for general electronic equipment. It features an inductance of 1.0 µH with a tolerance of ±20%. The component operates within a case size of 0805 (2012 metric), measuring 2.0 mm in length, 1.25 mm in width, and 1.0 mm in height. It supports a rated maximum current of 1.05 A and a saturation current of 1.23 A. The maximum DC resistance is specified at 140.4 mΩ.

Fixed Inductors Feature Summary

• Semi-shielded construction to minimize electromagnetic interference
• Wirewound ferrite core design for stable performance
• Compact 0805 surface-mount footprint

Fixed Inductors Applications

• General electronic equipment power circuits
• DC-DC converter input/output filtering
• Portable device power management systems

Fixed Inductors Procurement Notes

Verify the specific suffix '06' against official Taiyo Yuden documentation to confirm exact electrical tolerances and packaging specifications. Ensure compatibility with standard reflow soldering profiles for 0805 components. Cross-reference RoHS compliance status directly with the manufacturer's latest datasheet to meet regulatory requirements for your target market.

Fixed Inductors Selection Notes

Select this component when a compact 0805 footprint is required for power applications. The semi-shielded design offers a balance between magnetic field containment and cost efficiency. Consider the 1.05 A rated current limit for steady-state operation and ensure the 1.23 A saturation current accommodates peak load conditions without significant inductance drop.

Fixed Inductors Part Context

This part belongs to the LSQPB series of wirewound ferrite power inductors by Taiyo Yuden. The series provides various inductance values up to 1.5 mH with high current capabilities. The LSQPB201210 variant specifically targets space-constrained designs requiring reliable power filtering in small form factors.

Fixed Inductors Replacement Considerations

Official suggested alternates include BRL2012T330M and LSQPB201210T330M. Verify that substitute parts match the required inductance value and current ratings before integration.
