LTL912SEKSA

LED Indication - Discrete Overview

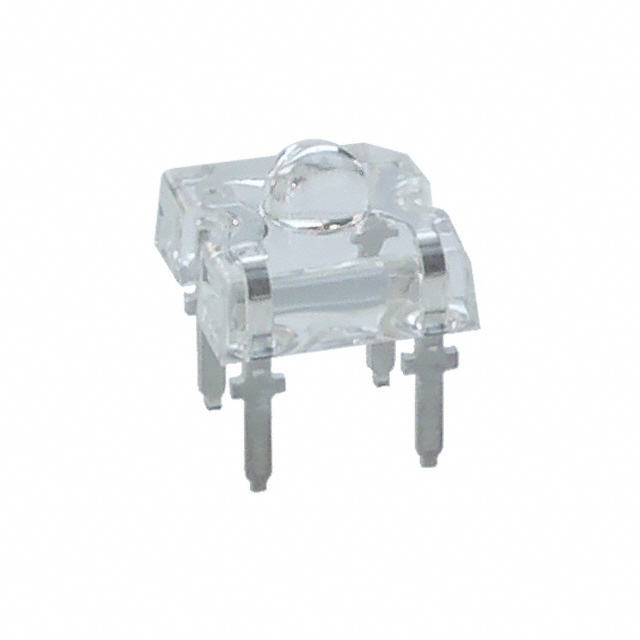

The LTL912SEKSA is a single-color red Super Flux LED manufactured by Lite-On Inc. It features a through-hole mounting style with a 4-DIP package configuration. The component emits light at a wavelength of 628 nm and offers a viewing angle of 60 degrees. Electrical characteristics include a forward voltage of 2.5 V and a test current of 70 mA, resulting in an intensity rating of 0.9 mcd. The lens material is clear colorless plastic.

LED Indication - Discrete Feature Summary

• Super Flux design for enhanced optical performance
• Through-hole 4-DIP package for standard PCB integration
• Clear colorless lens construction

LED Indication - Discrete Applications

• General indicator lighting
• Electronic equipment status display
• Control panel illumination

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Lite-On documentation to confirm exact electrical tolerances and binning classifications. Ensure the procurement channel provides valid RoHS compliance certificates. Confirm that the 4-DIP lead form matches the target PCB footprint requirements before finalizing orders.

LED Indication - Discrete Selection Notes

Select this component when a low-intensity red indication is required for through-hole assemblies. The 60-degree viewing angle suits applications where direct line-of-sight visibility is sufficient. Consider the 0.9 mcd output level against ambient lighting conditions to ensure adequate visibility without excessive power consumption.

LED Indication - Discrete Part Context

This part belongs to the LTL912 series of Super Flux LEDs from Lite-On. These components are designed for general-purpose indication tasks. The series utilizes standard through-hole technology compatible with manual and automated assembly processes common in consumer electronics manufacturing.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify pinout compatibility and spectral match if sourcing from alternative manufacturers.
