LTST-C170YKT

$0.16

Description：LED YELLOW CLEAR SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7ae80dce1721 Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTST-C170YKT is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED YELLOW CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTST-C170YKT

Description：LED YELLOW CLEAR SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Yellow
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：6mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：10mA
Viewing Angle：130°
Mounting Type：Surface Mount
Wavelength - Dominant：588nm
Wavelength - Peak：585nm
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：-
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTST-C170YKT

LTST-C170YKT

LED Indication - Discrete Overview

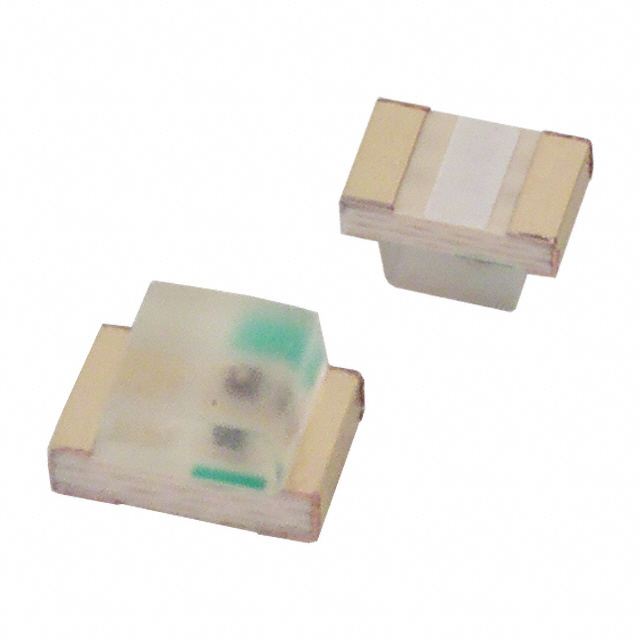

The LTST-C170YKT is a single-color yellow LED from Lite-On Inc., designed for surface-mount technology in the 0805 (2012 metric) package. It emits light at a wavelength of 588 nm with a water-clear rectangular lens measuring 1.4 mm x 1.25 mm. The component operates with a forward current of 20 mA and a forward voltage of 2.1 V, rated for a power dissipation of 60 mW. It features a viewing angle of 130 degrees and functions within a temperature range of -55°C to +85°C.

LED Indication - Discrete Feature Summary

Surface-mount construction in a compact 0805 footprint
Water-clear rectangular lens for consistent optical transmission
Wide 130-degree viewing angle for broad visibility

LED Indication - Discrete Applications

Panel indicator lights
Status signaling in consumer electronics
Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct binning and specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Cross-reference datasheet parameters with design-in requirements to validate electrical and thermal performance.

LED Indication - Discrete Selection Notes

Select this component when a standard yellow indication is required in space-constrained designs utilizing the 0805 package. Ensure the 2.1 V forward voltage aligns with the system's drive circuitry. Consider the 130-degree viewing angle for applications requiring wide-area visibility without additional optics.

LED Indication - Discrete Part Context

This part belongs to the LITEON CHIP LED 0805 series, which provides standardized surface-mount LEDs for general-purpose indication. The series offers various color options within the same mechanical footprint, facilitating inventory simplification and board layout consistency across different product variants.
