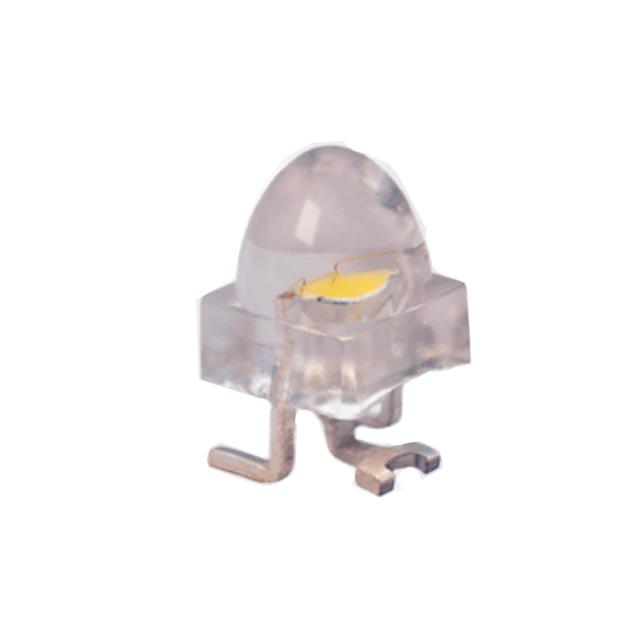

LTWMR4DZ3KA

$1.02

Description：LED WHITE CLEAR SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cbcf1f7aacce Category: LED Indication - Discrete Brand: Lite-On Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LTWMR4DZ3KA is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lite-On Inc.. Its product description is LED WHITE CLEAR SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LTWMR4DZ3KA

Description：LED WHITE CLEAR SMD
Series：-
Mfr：Lite-On Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：Common Anode
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：15000mcd
Lens Style：Round with Domed Top
Lens Size：4.20mm Dia
Voltage - Forward (Vf) (Typ)：2.95V
Current - Test：20mA
Viewing Angle：30°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：3-SMD, Gull Wing
Supplier Device Package：-
Size / Dimension：4.20mm L x 4.20mm W
Height (Max)：7.40mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LTWMR4DZ3KA

LTWMR4DZ3KA

LED Indication - Discrete Overview

The LTWMR4DZ3KA is a single-color white surface-mount LED manufactured by Lite-On Inc. It features a round lens with a 30-degree viewing angle and emits light at a peak wavelength of 450 nm. The component has a forward voltage of 2.95 V at a forward current of 20 mA, producing a luminous intensity of 21 cd. Its physical dimensions are 4.20 mm in length and width, with a maximum height of 7.40 mm. The device operates within a temperature range of -40 C to +85 C and is moisture sensitive.

LED Indication - Discrete Feature Summary

High brightness output suitable for indicator applications
Surface mount design compatible with standard SMT assembly processes
Round lens configuration providing a 30-degree viewing angle

LED Indication - Discrete Applications

Device status indicators
Panel illumination
Consumer electronics signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for the LTWMR4DZ3KA to confirm RoHS compliance details and humidity sensitivity classification prior to procurement. Ensure that handling procedures account for moisture sensitivity levels as indicated in the official documentation. Cross-reference the package type as 3-SMD Gull Wing to match PCB footprint requirements accurately during the sourcing phase.

LED Indication - Discrete Selection Notes

Select this component when a compact white SMD LED with a 30-degree beam angle is required. The 4.20 mm square form factor fits space-constrained designs. Verify that the 2.95 V forward voltage aligns with the system's drive circuit capabilities. Confirm that the operating temperature range meets the environmental conditions of the intended application.

LED Indication - Discrete Part Context

This part belongs to the LTWMR4 series of surface mount LEDs from Lite-On Inc. The series offers various colors and lens configurations for general indication purposes. The LTWMR4DZ3KA specifically provides white light emission in a gull-wing package, distinguishing it from through-hole or other surface mount variants within the broader product line.
