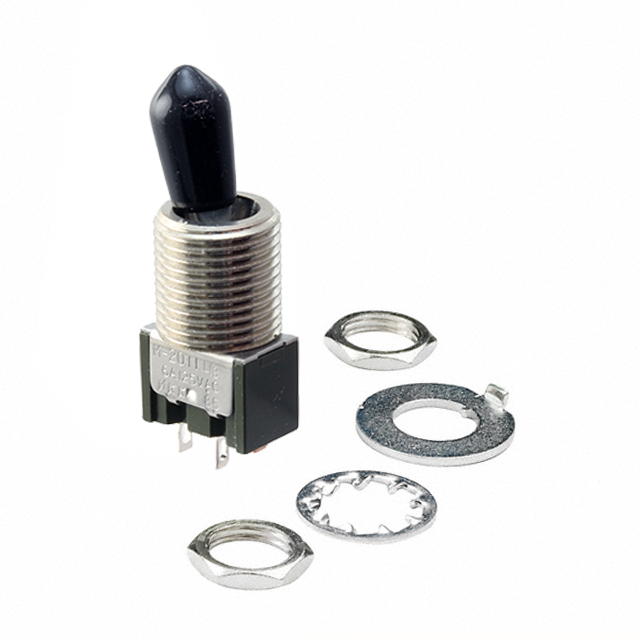

M2011BB1W01-RA

M2011BB1W01-RA is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE SPST 6A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for M2011BB1W01-RA

• Description：SWITCH TOGGLE SPST 6A 125V
• Series：M
• Mfr：NKK Switches
• Package：Bulk,Box
• Mounting Type：Panel Mount
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：6A (AC), 4A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：30 V
• Actuator Type：Standard Round with Cap
• Actuator Length：12.30mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Panel Cutout Dimensions：Circular - 12.50mm Dia
• Bushing Thread：M12 x 1
• Ingress Protection：-
• Features：Black Cap
• Operating Temperature：-30°C ~ 85°C

Toggle Switches datasheet and documents for M2011BB1W01-RA
