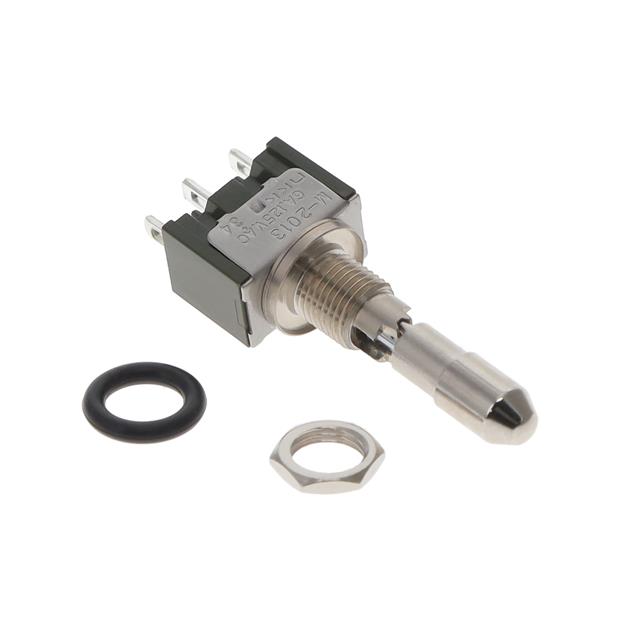

Toggle Switches M2013LL3W01 product image

M2013LL3W01

$6.52
  • Description：SWITCH TOGGLE SPDT 6A 125V
  • Series：M
  • Mfr：NKK Switches
  • Package：Bulk,Bulk

SKU:8a5632a3f22f Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

M2013LL3W01 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE SPDT 6A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for M2013LL3W01

  • Description：SWITCH TOGGLE SPDT 6A 125V
  • Series：M
  • Mfr：NKK Switches
  • Package：Bulk,Bulk
  • Mounting Type：Panel Mount
  • Circuit：SPDT
  • Switch Function：On-Off-On
  • Current Rating (Amps)：6A (AC), 3A (DC)
  • Voltage Rating - AC：125 V
  • Voltage Rating - DC：30 V
  • Actuator Type：Locking Lever
  • Actuator Length：16.50mm
  • Illumination：Non-Illuminated
  • Illumination Type, Color：-
  • Illumination Voltage (Nominal)：-
  • Termination Style：Solder Lug
  • Panel Cutout Dimensions：Circular - 6.50mm Dia
  • Bushing Thread：1/4-40
  • Ingress Protection：IP67 - Dust Tight, Waterproof
  • Features：Epoxy Sealed Terminals
  • Operating Temperature：-30°C ~ 85°C

Toggle Switches datasheet and documents for M2013LL3W01
