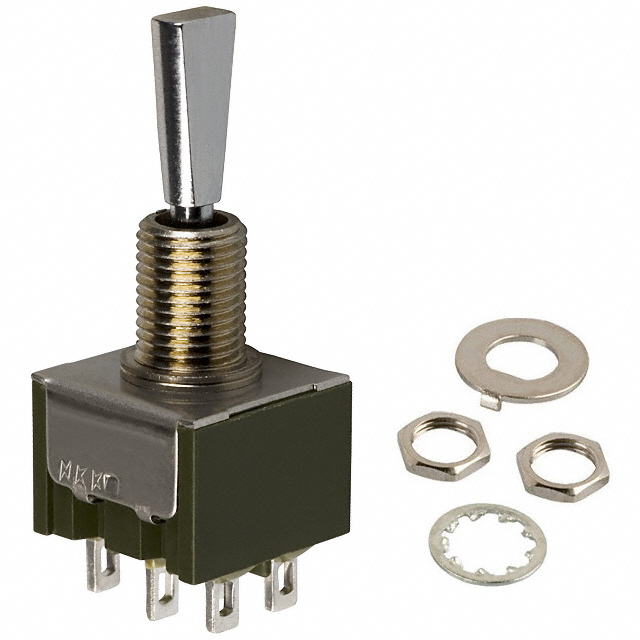

Toggle Switches M2022ES1W01 product image

M2022ES1W01

  • Description：SWITCH TOGGLE DPDT 6A 125V
  • Series：M
  • Mfr：NKK Switches
  • Package：Bulk

SKU:48b4b5878749 Category: Brand:

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

M2022ES1W01 is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE DPDT 6A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for M2022ES1W01

  • Description：SWITCH TOGGLE DPDT 6A 125V
  • Series：M
  • Mfr：NKK Switches
  • Package：Bulk
  • Mounting Type：Panel Mount
  • Circuit：DPDT
  • Switch Function：On-On
  • Current Rating (Amps)：6A (AC), 4A (DC)
  • Voltage Rating - AC：125 V
  • Voltage Rating - DC：30 V
  • Actuator Type：Flatted
  • Actuator Length：11.40mm
  • Illumination：Non-Illuminated
  • Illumination Type, Color：-
  • Illumination Voltage (Nominal)：-
  • Termination Style：Solder Lug
  • Panel Cutout Dimensions：Circular - 6.50mm Dia
  • Bushing Thread：1/4-40
  • Ingress Protection：-
  • Features：Epoxy Sealed Terminals
  • Operating Temperature：-30°C ~ 85°C

Toggle Switches datasheet and documents for M2022ES1W01

M2022ES1W01
