M22-2010205

Headers, Male Pins Overview

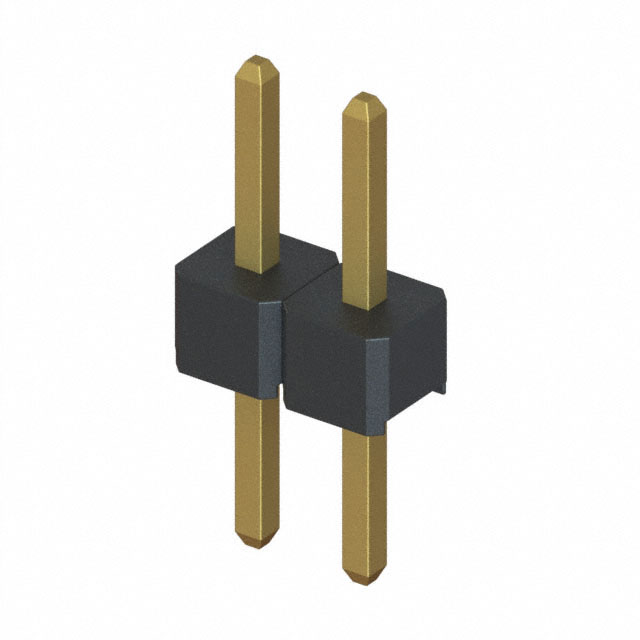

The Harwin M22-2010205 is a 2-position vertical board-to-board header from the M22 series. It features a 2 mm pitch and single row configuration with gold-plated phosphor bronze contacts. The nylon housing supports through-hole installation for reliable connections. Operating temperatures range from -40°C to 105°C, with a current rating of 1A. Tail pin length measures 3.4mm, mating pin length 3.5mm.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Gold-plated phosphor bronze contact system
• Nylon housing construction

Headers, Male Pins Applications

• Compact electronic assemblies
• Board-to-board signal transmission
• High-density circuit board integration

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors. Confirm RoHS compliance status via official documentation. Ensure storage conditions maintain integrity of gold plating and nylon housing properties before installation.

Headers, Male Pins Selection Notes

Select this connector for applications requiring vertical board stacking with precise 2mm spacing. Verify compatibility with mating socket specifications. Consider thermal operating limits when designing high-temperature environments.

Headers, Male Pins Part Context

Part of Harwin's M22 series offering compact interconnect solutions. Designed for space-constrained electronics requiring reliable vertical connections between printed circuit boards.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers available.
