M22-2010305

Headers, Male Pins Overview

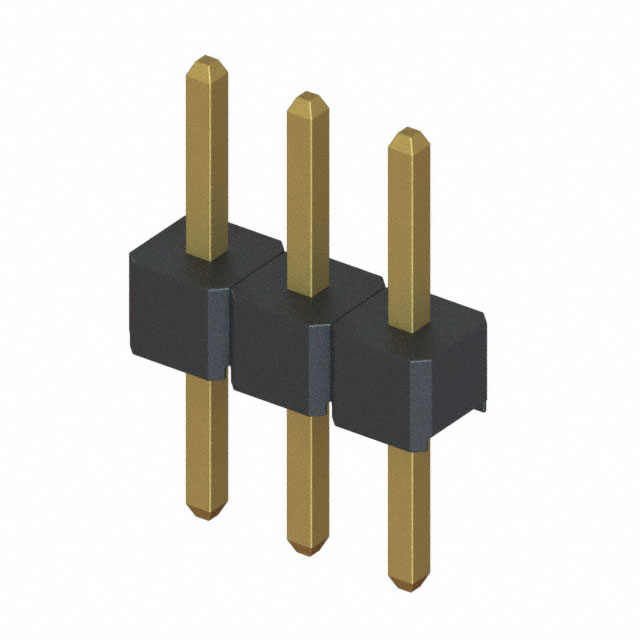

The Harwin M22-2010305 is a 3-position, single-row pin header from the M22 series, featuring a 2 mm pitch. Designed for through-hole mounting, this vertical connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. It operates within a temperature range of -40°C to 105°C and supports a current rating of 1A. The housing is constructed from nylon, providing structural integrity for board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Vertical through-hole pin header design for direct PCB integration
• Gold-plated phosphor bronze contacts for corrosion resistance
• Nylon housing material for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific contact count and pitch against project requirements before ordering. Confirm that the vertical orientation and through-hole termination method align with the target PCB layout. Ensure compatibility with mating sockets in the same M22 series family. Check for any RoHS compliance documentation if required by regional regulations.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row connection is needed with a standard 2 mm spacing. The gold plating offers superior conductivity compared to tin variants. Consider the 1A current rating for power distribution limits. The vertical form factor allows for compact stacking or side-by-side arrangements on the board surface.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, known for its robust mechanical design and high-density capabilities. The M22 line offers various configurations including different row counts, pitches, and termination styles. This specific model represents a basic 3-pin variant suitable for simple signal routing tasks.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Direct replacement requires matching the 2 mm pitch, 3-position count, vertical orientation, and through-hole mounting style. Verify electrical ratings and housing material compatibility with existing designs.
