M22-2020346

Headers, Male Pins Overview

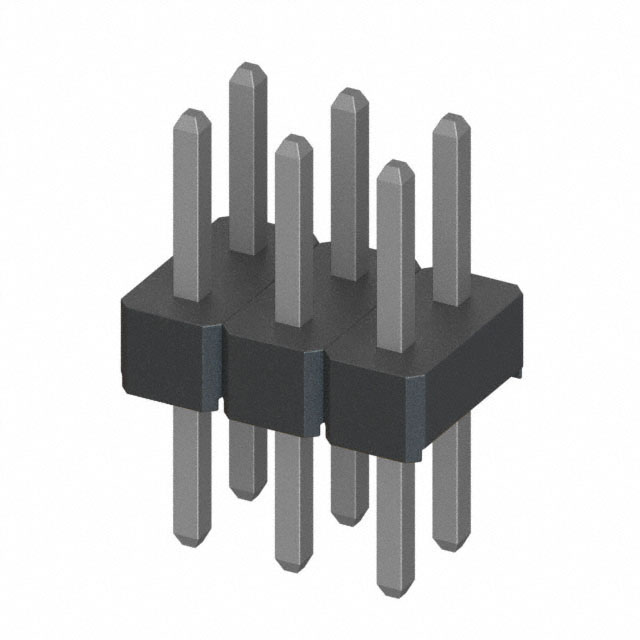

The M22-2020346 is a vertical, through-hole pin header from the Harwin M22 series. It features a 2.00mm (0.079 inch) pitch and a 3+3 dual in-line configuration with six total positions. The connector utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Designed for board-to-board applications, it supports a rated current of 1A per contact and operates within a temperature range of -40°C to +105°C. The housing is constructed from black PA6T nylon with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Vertical orientation facilitates standard PCB mounting configurations.
• Gold-plated phosphor bronze contacts ensure durable electrical connectivity.
• Cuttable design allows for flexible position customization.

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic equipment signal routing
• Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm orientation and contact count. Ensure compatibility with mating socket components regarding pitch and row spacing. Confirm that the operating environment temperature remains within the specified -40°C to +105°C range for long-term reliability.

Headers, Male Pins Selection Notes

Select this component for applications requiring a low-profile, vertical header with a 2.00mm pitch. The 3+3 DIL format is suitable for compact designs needing six isolated connections. Consider the through-hole termination method for robust mechanical stability during assembly.

Headers, Male Pins Part Context

This part belongs to the M22 series, which offers versatile 2.00mm pitch connectors available in various orientations and row counts. The series is designed for high-density applications using high-temperature thermoplastic materials compatible with reflow soldering processes.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include M22-6361042 and M22-6341042. Verify that substitute headers maintain the same 2.00mm pitch and 3+3 configuration to ensure mechanical fit.
