M22-2030246

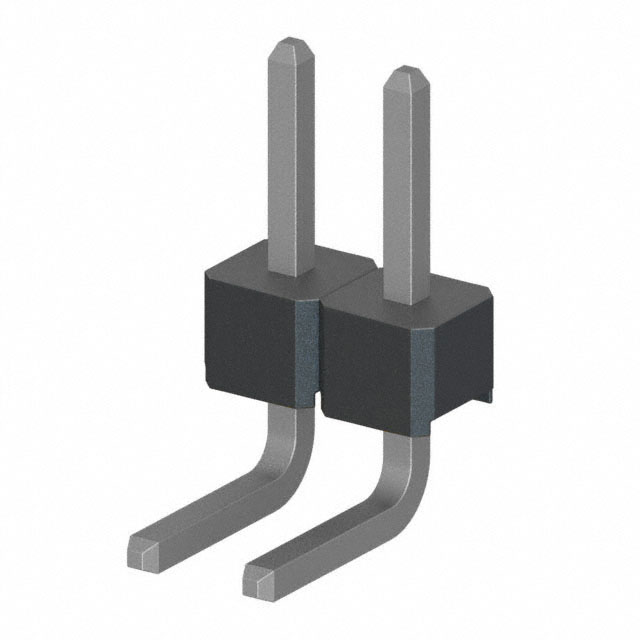

Description：CONN HEADER R/A 2POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:9e9e8ff4555e Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2030246 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 2POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2030246

Description：CONN HEADER R/A 2POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2030246

M22-2030246

Headers, Male Pins Overview

The Harwin M22-2030246 is a single-row pin header assembly designed for board-to-board interconnection. It features a 2mm pitch and contains 4 positions. The connector utilizes phosphor bronze contacts with tin plating to ensure reliable signal transmission. Designed for through-hole mounting, the unit includes straight pins with a tail length of 3.4mm. The housing is constructed from nylon, providing structural integrity within an operating temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

Single-row configuration for compact circuit board layouts
Tin-plated phosphor bronze contacts for corrosion resistance
Through-hole termination method for secure PCB attachment

Headers, Male Pins Applications

Board-to-board signal interconnects
General electronic equipment internal wiring
Industrial control module connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status. Ensure that the tin-plated contact finish meets the environmental requirements of the target application. Cross-reference the mechanical dimensions with the mating receptacle to guarantee proper alignment and fit during assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row connection is required for standard density applications. The 2mm pitch offers a balance between pin count and spacing. Consider the tin plating for general use environments where gold plating is not strictly necessary for high-cycle mating scenarios.

Headers, Male Pins Part Context

This component belongs to the M22 series, which provides a comprehensive range of board-to-board connectors. The series supports various row counts, orientations, and contact finishes. This specific model represents the horizontal, single-row variant within the broader product family.
