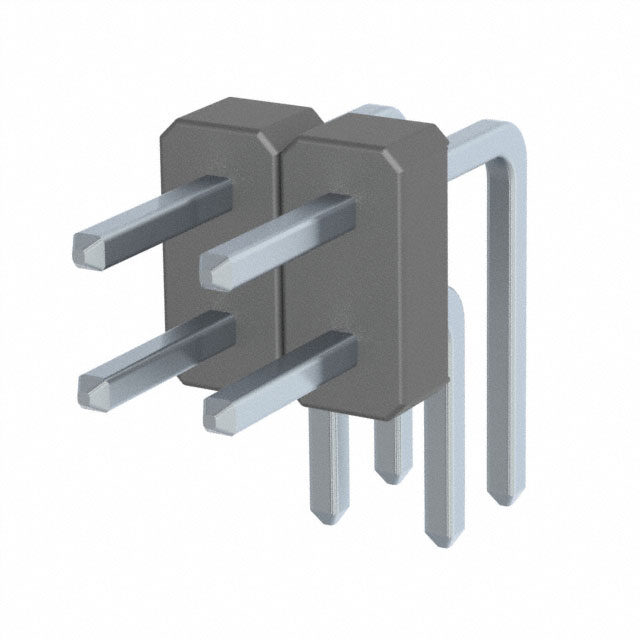

M22-2040246

$0.23

Description：CONN HEADER R/A 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:5dc83890d517 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2040246 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 4POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2040246

Description：CONN HEADER R/A 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2040246

M22-2040246

Headers, Male Pins Overview

The M22-2040246 is a horizontal dual in-line pin header from the Harwin M22 series. It features a 2 mm pitch and a 4-position configuration (2+2). The connector utilizes tin-plated phosphor bronze contacts with a current rating of 1 A per contact. Designed for through-hole solder termination, it operates within a temperature range of -40°C to +105°C. The housing is constructed from black nylon, providing UL 94 V-0 flammability ratings. This component supports board-to-board connections and offers reliable signal transmission for low-power applications.

Headers, Male Pins Feature Summary

Horizontal orientation facilitates compact board stacking and space-constrained layouts
Tin-plated phosphor bronze contacts ensure durability for general signal applications
Nylon housing provides mechanical stability and UL 94 V-0 flame resistance

Headers, Male Pins Applications

Board-to-board interconnections
Low-power signal transmission
Compact electronic module assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official datasheet to confirm terminal plating and orientation. Ensure compatibility with mating connectors regarding pitch and row configuration. Confirm RoHS compliance status if required by project specifications. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this component when a horizontal 2 mm pitch header is required for low-current signal paths. The 4-position layout suits simple interface needs. Consider the tin plating for cost-effective general-purpose use rather than high-cycle or corrosive environments. Verify that the 1 A rating meets the circuit requirements.

Headers, Male Pins Part Context

This part belongs to the M22 series, characterized by a 2.00 mm pitch and robust construction. The series includes various configurations for different mounting angles and position counts. The M22-2040246 specifically addresses the need for horizontal headers in dense PCB designs.
