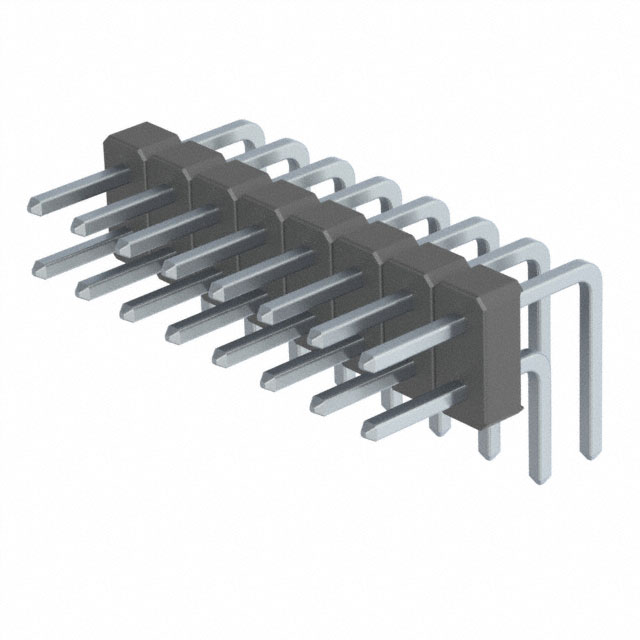

M22-2040846

Description：CONN HEADER R/A 16POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:c657a912edea Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2040846 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 16POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2040846

Description：CONN HEADER R/A 16POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.157" (4.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2040846

M22-2040846

Headers, Male Pins Overview

The M22-2040846 is a male pin header from the Harwin M22 series, designed for board-to-board interconnections. It features a 2 mm pitch and a 2-row configuration with 16 positions (8+8). The connector utilizes phosphor bronze contacts with gold plating and a black nylon insulation body. Rated for 1 A current and 650 VAC voltage, it operates within a temperature range of -40°C to +105°C. The unit weight is 262 mg.

Headers, Male Pins Feature Summary

Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
Nylon insulation housing provides structural integrity and UL94 V-0 flammability rating.
Right-angle through-hole mounting facilitates efficient PCB layout in constrained spaces.

Headers, Male Pins Applications

Board-to-board interconnects
High-density electronic assemblies
Industrial control systems

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Harwin documentation. Confirm that the specific ordering suffix matches the required contact plating and orientation specifications. Ensure compliance with RoHS directives and check for any end-of-life notifications prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a right-angle, double-row header with a 2 mm pitch is required. The gold plating on phosphor bronze contacts suits applications demanding high reliability and low contact resistance. Verify that the 1 A current rating and 650 VAC voltage withstand meet the system's electrical requirements.

Headers, Male Pins Part Context

This component belongs to the M22 series, a family of connectors known for their compact form factor and robust mechanical design. The series supports various row counts and orientations, making it suitable for diverse industrial and commercial electronics applications requiring durable board-to-board connections.
