M22-2200246

Headers, Male Pins Overview

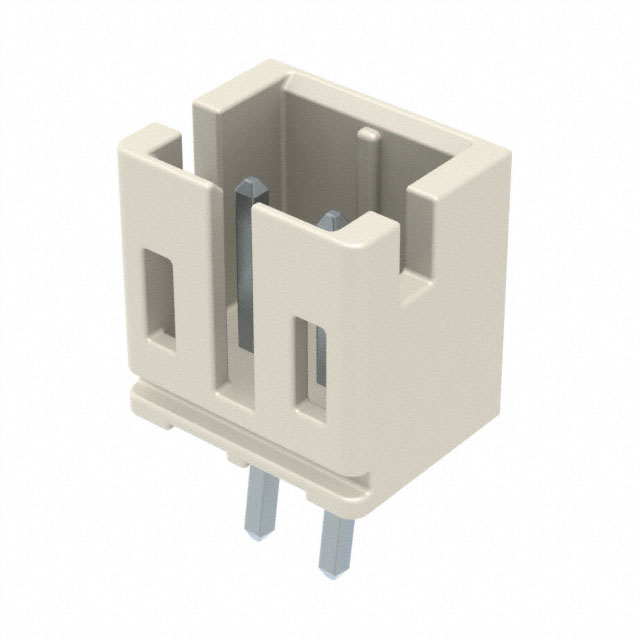

The Harwin M22-2200246 is a vertical shrouded pin header from the M22 series, designed for board-to-board connections. It features a 2.00 mm pitch and a 2-position configuration in a single row. The connector utilizes through-hole termination for secure PCB mounting. Contacts are made of phosphor bronze with gold plating to ensure reliable signal transmission. The housing is constructed from nylon, providing structural integrity and electrical insulation.

Headers, Male Pins Feature Summary

• Vertical orientation with integrated shrouding for precise alignment
• Gold-plated phosphor bronze contacts for conductivity
• Nylon housing for thermal stability and insulation

Headers, Male Pins Applications

• Board-to-board interconnects
• Electronic module assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact count and orientation. Ensure compatibility with mating socket specifications regarding shroud design and pin length. Confirm RoHS compliance status if required by project regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertically oriented connection is required. The shrouded design prevents misalignment during insertion. Verify that the PCB footprint matches the 2.00 mm pitch specification. Consider the current rating and voltage limits relative to the application environment to ensure safe operation within the specified temperature range.

Headers, Male Pins Part Context

This part belongs to the M22 series of rectangular connectors manufactured by Harwin. The series is characterized by high-density pin configurations and robust mechanical locking features. The M22-2200246 specifically represents a basic two-position variant within this family, offering a compact solution for simple interconnect needs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate generic 2mm pitch headers only if they match the shrouded geometry and pin dimensions exactly.
