M22-2200946

Headers, Male Pins Overview

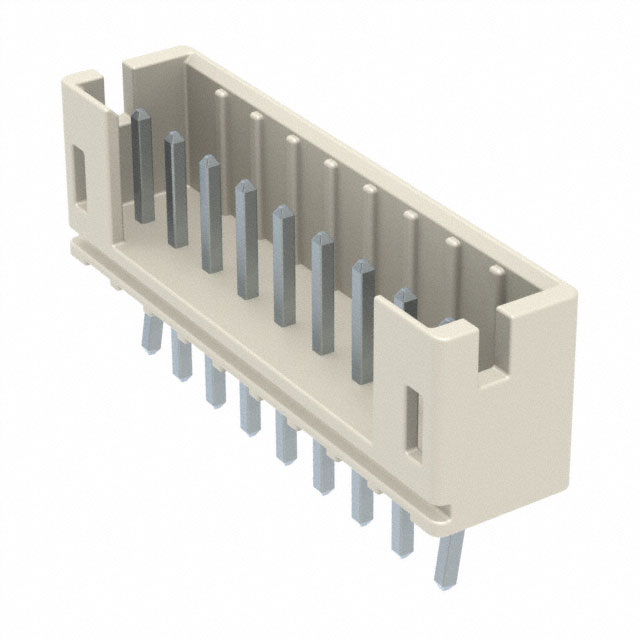

The Harwin M22-2200946 is a single-row PCB header connector from the M22 series, designed for board-to-board applications. It features a 2mm pitch and accommodates 9 positions with male pin contacts. The unit utilizes a vertical orientation and through-hole solder termination for secure PCB mounting. Electrical ratings include a current capacity of 1A and a voltage rating of 500V. The housing is constructed from black nylon, while the contacts are made of phosphor bronze with tin plating. Operating temperatures range from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting configuration for direct PCB integration
• Durable tin-plated phosphor bronze contacts ensuring reliable conductivity
• Black nylon housing providing structural stability and insulation

Headers, Male Pins Applications

• Board-to-board interconnections in industrial equipment
• High-density electronic assemblies requiring 2mm spacing
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific part number M22-2200946 against official Harwin documentation to confirm availability status. Ensure that the required contact count and pitch match the design specifications. Check for any obsolescence notices or alternative sourcing options if standard supply chains are disrupted. Confirm compliance requirements such as RoHS status prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header with a 2mm pitch is required for board-to-board connections. Consider the 1A current rating and 500V voltage limits to ensure they meet circuit demands. The through-hole installation method and tin-plated contacts suit general-purpose applications where high-frequency performance is not the primary constraint compared to cost-effective reliability.

Headers, Male Pins Part Context

This connector belongs to the Harwin M22 series, which offers various configurations including single and double rows. The series is characterized by its compact 2mm pitch design, suitable for modern electronics needing dense layouts. The M22-2200946 specifically represents the 9-position variant within this extensive family of interconnect solutions.

Headers, Male Pins Replacement Considerations

Consult Harwin's official substitution guide for verified alternatives. Generic equivalents may differ in material composition or thermal resistance. Verify mechanical dimensions and electrical ratings before swapping components to maintain system integrity.
