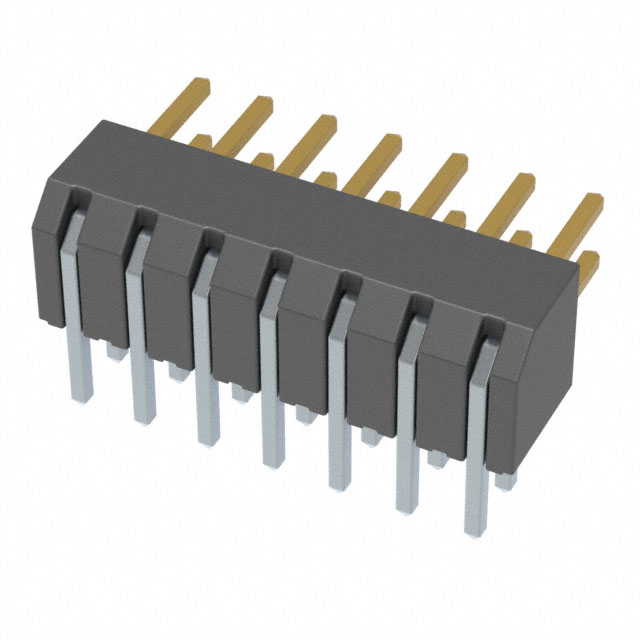

M22-2410742

Description：CONN HEADER R/A 14POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube

SKU:894ee58683fd Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2410742 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 14POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2410742

Description：CONN HEADER R/A 14POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：0.110" (2.79mm)
Overall Contact Length：-
Insulation Height：0.169" (4.30mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2410742

M22-2410742

Headers, Male Pins Overview

The M22-2410742 is a male pin header from the Harwin M22 series, designed for board-to-board interconnections. It features a 2-row configuration with 14 positions and a 2 mm (0.079 inch) pitch. The connector utilizes a right-angle orientation for surface mounting applications. Contact materials are specified as brass with gold plating to ensure reliable signal transmission. The housing is constructed from thermoplastic material, providing structural integrity and electrical insulation. This component supports through-hole termination methods for secure PCB attachment.

Headers, Male Pins Feature Summary

Right-angle design facilitates compact vertical stacking in dense layouts
Gold-plated brass contacts provide durable conductivity and corrosion resistance
Two-row structure enables high-density signal routing within limited footprint

Headers, Male Pins Applications

Industrial control system interface modules
Consumer electronics internal board connections
Telecommunications equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm exact contact length, plating thickness, and packaging specifications. Ensure compatibility with mating female connectors regarding pitch and row alignment. Check for RoHS compliance status if required by project regulations. Confirm availability through authorized distributors as lifecycle status may vary.

Headers, Male Pins Selection Notes

Select this component when right-angle board-to-board connectivity is required with a 2 mm pitch. Consider the 14-position capacity for signal density needs. Evaluate mechanical constraints regarding the right-angle profile height. Verify that the gold plating meets environmental durability requirements for the intended operating conditions.

Headers, Male Pins Part Context

This part belongs to the M22 series of headers and wire housings manufactured by Harwin Inc. The series is known for robust performance in demanding environments. The M22-2410742 specifically addresses applications requiring right-angle male pins. It complements other variants in the lineup offering different row counts and orientations.
