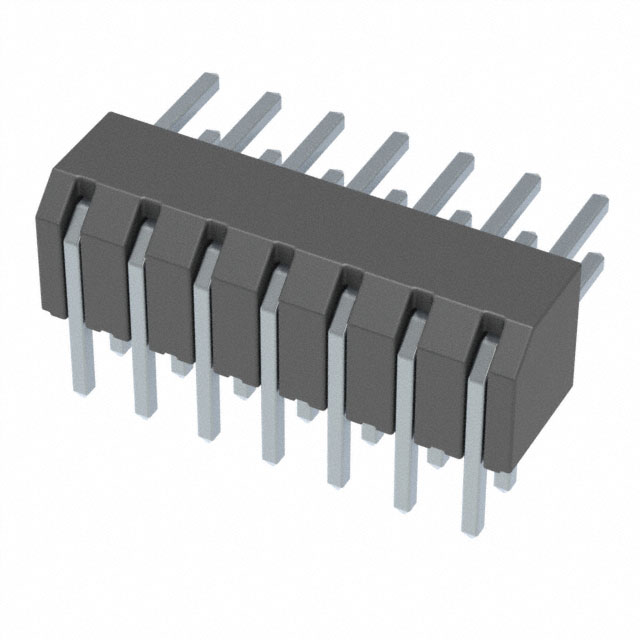

M22-2410746

M22-2410746 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 14POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2410746

• Description：CONN HEADER R/A 14POS 2MM
• Series：M22
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：14
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.157" (4.00mm)
• Contact Length - Post：0.110" (2.79mm)
• Overall Contact Length：-
• Insulation Height：0.169" (4.30mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Polyamide (PA6T), Nylon 6T
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：2A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2410746
