M22-2411042

Headers, Male Pins Overview

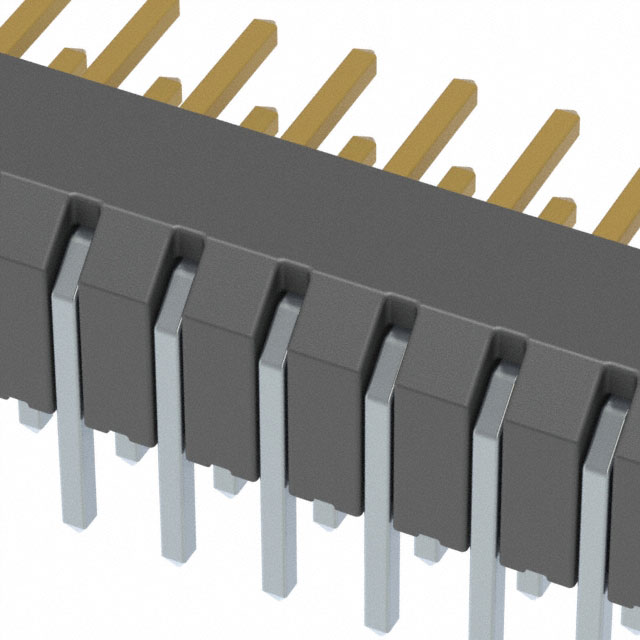

The M22-2411042 is a dual in-line pin header from the Harwin M22 series, designed for board-to-board connections. It features a 2 mm pitch with 12 positions per row across two rows, totaling 24 contacts. The connector utilizes phosphor bronze contacts with tin plating and a nylon housing. Rated for 500 V voltage and 2 A current, it operates within a temperature range of -40°C to +105°C. The component employs through-hole solder termination and is configured for right-angle mounting.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration
• Tin-plated phosphor bronze contacts
• Nylon insulation housing

Headers, Male Pins Applications

• Board-to-board interconnections
• Electronic assembly integration
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm availability status. Note that this component may be subject to end-of-life notifications or obsolescence warnings. Confirm technical specifications including contact count, pitch, and termination type directly from the datasheet before procurement to ensure compatibility with design requirements.

Headers, Male Pins Selection Notes

Select this component when a right-angle, through-hole header with tin-plated contacts is required. Ensure the application environment supports the specified operating temperature range and electrical ratings. Verify mechanical fit regarding the right-angle orientation and through-hole footprint dimensions during the design phase.

Headers, Male Pins Part Context

This part belongs to the M22 series, characterized by a 2 mm pitch and robust construction for general electronic applications. The series offers various configurations including different row counts, contact materials, and mounting angles to suit diverse board layout needs.

Headers, Male Pins Replacement Considerations

M22-2042005
