M22-2510205

Headers, Male Pins Overview

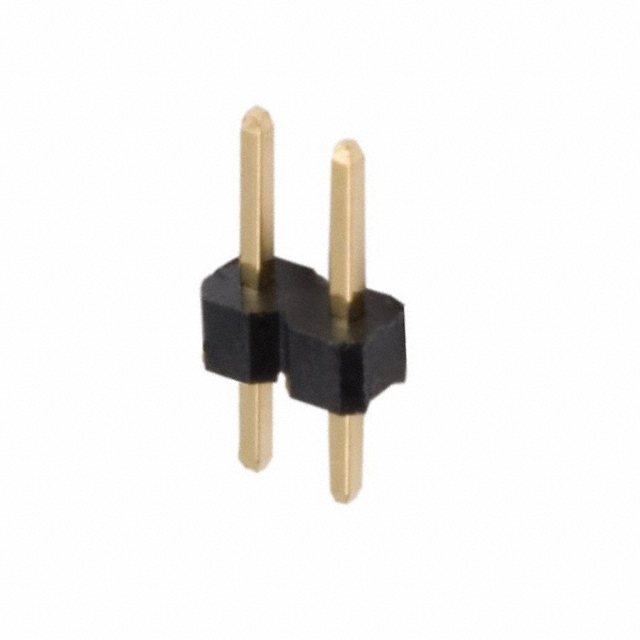

The M22-2510205 is a pin header connector from the Harwin M22 series, designed for through-hole mounting. It features a single row with two positions and a 2.00mm (0.079 inch) pitch. The contacts are male pins made of phosphor bronze with gold plating on the mating surface. The housing is constructed from black polyamide (PA6T/nylon 6T), offering an insulation height of 1.50mm (0.059 inch). This component supports a maximum operating temperature of 105°C and a minimum of -40°C, ensuring reliability in various electronic applications.

Headers, Male Pins Feature Summary

• Single-row configuration with two positions for compact circuit board integration
• Gold-plated phosphor bronze contacts ensure reliable electrical connectivity
• Black PA6T nylon insulation provides thermal stability up to 105°C
• Through-hole right-angle or vertical mounting options available within the series

Headers, Male Pins Applications

• Compact consumer electronics assemblies requiring minimal footprint
• Industrial control boards with limited space constraints
• Automotive internal communication modules
• Medical device interconnects needing reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific orientation (vertical vs. right-angle) as the base part number may refer to a generic series identifier; confirm the exact suffix matches the required mechanical profile. Ensure compatibility with mating sockets from the same M22 family to maintain pitch alignment. Check RoHS compliance status if restricted substances are a concern for your region. Confirm lead times with authorized distributors as availability can fluctuate based on production cycles.

Headers, Male Pins Selection Notes

Select this component when a low-profile, two-position connection is required in dense PCB layouts. The 2.00mm pitch allows for higher density compared to standard 2.54mm headers while maintaining robust contact integrity. Consider the thermal rating of 105°C for environments with moderate heat generation. Verify that the phosphor bronze material meets the mechanical stress requirements of the assembly process.

Headers, Male Pins Part Context

This connector belongs to the M22 series by Harwin Inc., known for high-density interconnect solutions. The series offers various configurations including different row counts and pitches. The M22-2510205 specifically addresses the need for small-scale connections in modern electronics where space efficiency is critical without compromising electrical performance.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific variant. Users should consult Harwin's official cross-reference guides for compatible alternatives within the M22 family or similar series from other manufacturers, ensuring identical pitch and contact count.
