M22-2510446

Description：CONN HEADER VERT 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:d860cebadc16 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2510446 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 4POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2510446

Description：CONN HEADER VERT 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.287" (7.30mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2510446

M22-2510446

Headers, Male Pins Overview

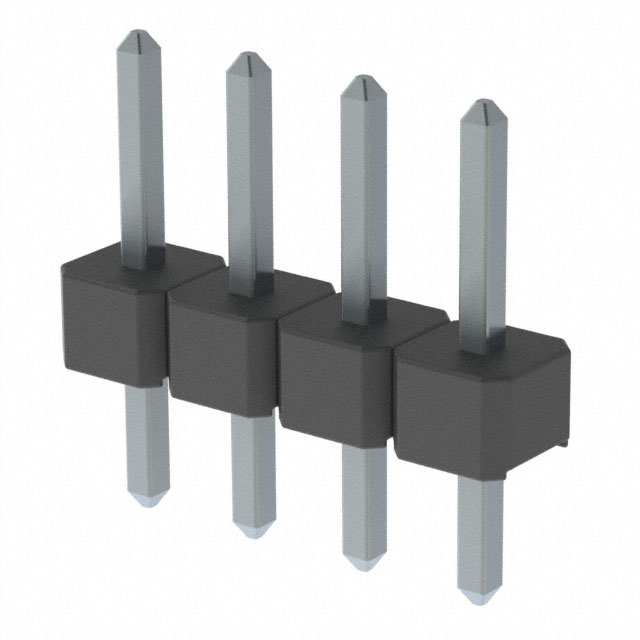

The M22-2510446 is a vertical pin header from the Harwin M22 series, designed for board-to-board or cable connections. It features a 2 mm pitch and a single row configuration with four positions. The connector utilizes through-hole termination for secure PCB mounting. Contacts are finished with tin plating to ensure reliable signal transmission. This component serves as a male pin strip within the broader M22 interconnect ecosystem.

Headers, Male Pins Feature Summary

Vertical orientation facilitates compact board stacking applications
Tin-plated contacts provide corrosion resistance and conductivity
Through-hole termination ensures mechanical stability on printed circuit boards

Headers, Male Pins Applications

Board-to-board interconnection systems
Cable assembly integration
General electronic equipment connectivity

Headers, Male Pins Procurement Notes

Verify current availability status as distribution channels may vary. Confirm RoHS compliance requirements against specific project standards. Ensure mating connectors match the 2 mm pitch and single-row specification. Check for any obsolescence notifications from the manufacturer before finalizing design-in decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical header is required for four-channel connections. The 2 mm pitch offers a balance between density and ease of handling. Tin plating is suitable for general-purpose environments where gold plating is not strictly necessary. Consider the single-row layout for simplified routing compared to dual-row alternatives.

Headers, Male Pins Part Context

This part belongs to the M22 series, a family of rectangular connectors known for their versatility in various industrial and consumer applications. The M22 series includes headers, sockets, and wire housings with consistent 2 mm spacing. The M22-2510446 specifically addresses the need for simple, reliable vertical interconnects in space-constrained designs.
