M22-2510605

Headers, Male Pins Overview

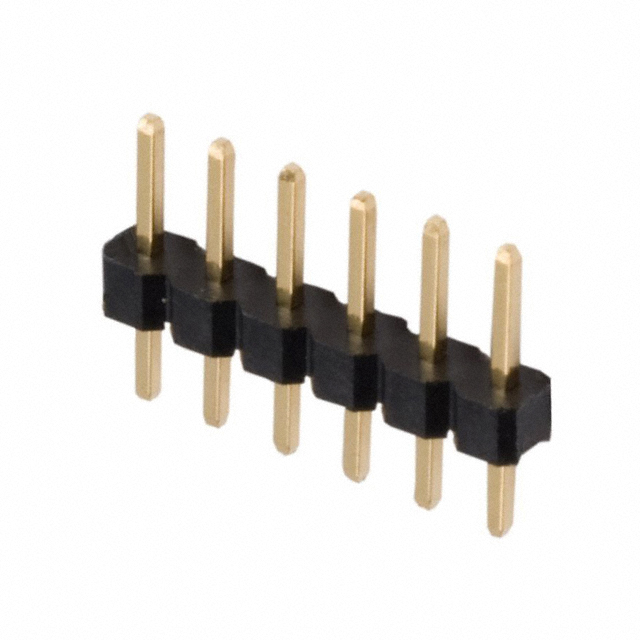

The M22-2510605 is a 2.00mm pitch single-in-line vertical pin header manufactured by Harwin Inc. It features six positions with gold-plated phosphor bronze contacts designed for through-hole mounting. The connector supports a current rating of 2A and offers mated stacking heights of 5.9mm and 8.6mm. This component belongs to the M22 series, providing reliable board-to-board interconnections in compact PCB applications.

Headers, Male Pins Feature Summary

• Vertical single-in-line configuration for space-efficient PCB layouts
• Gold-plated contacts ensure reliable signal transmission
• Through-hole termination method for secure mechanical attachment

Headers, Male Pins Applications

• Compact PCB interconnections requiring male pin headers
• Board-to-board connections in consumer electronics
• Industrial control systems needing reliable signal paths

Headers, Male Pins Procurement Notes

Verify RoHS compliance status and confirm lead times with authorized distributors. Ensure compatibility with mating connectors regarding stacking height requirements. Check for obsolescence notifications as components may be subject to discontinuation. Validate that the specific gold plating variant matches design specifications.

Headers, Male Pins Selection Notes

Select this part when a 2.00mm pitch vertical header is required. Confirm the 6-position count aligns with circuit needs. Verify that the 2A current rating meets system demands. Consider the 5.9mm or 8.6mm stacking height based on enclosure constraints.

Headers, Male Pins Part Context

This component is part of the Harwin M22 series, which specializes in 2.00mm pitch PCB connectors. The series offers various configurations including straight and right-angle options. The M22-2510605 specifically addresses the need for vertical, single-row headers with durable gold contacts.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series should maintain the 2.00mm pitch and 6-position count. Verify identical stacking heights and contact plating. Cross-reference with other manufacturers offering equivalent 2mm pitch vertical headers if Harwin supply is limited.
