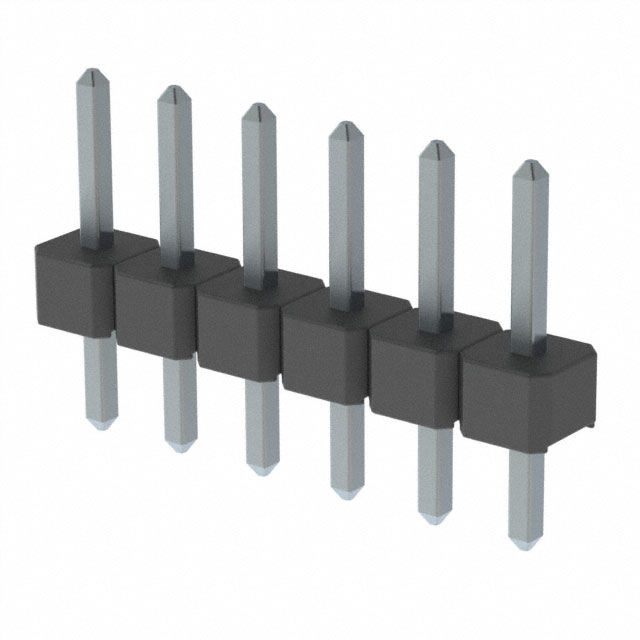

M22-2510646

$0.32

Description：CONN HEADER VERT 6POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:99874a163259 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2510646 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 6POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2510646

Description：CONN HEADER VERT 6POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.287" (7.30mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2510646

M22-2510646

Headers, Male Pins Overview

The M22-2510646 is a single-row male pin header from the Harwin M22 series, designed for through-board mounting. It features a 2 mm (0.079 in) pitch and provides 6 positions. The connector utilizes phosphor bronze contacts with a tin finish, ensuring reliable electrical performance. It is rated for 1 A current and 650 VAC voltage. The housing is constructed from black nylon with UL 94 V-0 flammability rating, supporting operation between -40°C and +105°C. The solder pin length measures 3.5 mm.

Headers, Male Pins Feature Summary

Single-row vertical configuration with secure latching mechanism
High-temperature resistant housing material
Through-hole termination for board-to-board connectivity

Headers, Male Pins Applications

Board-to-board interconnections
Signal transmission in electronic assemblies
General purpose connector applications

Headers, Male Pins Procurement Notes

Verify the specific variant against official documentation, as the M22 series includes both single-row latching and double-row jackscrew options. Confirm that the tin-plated contact finish aligns with your assembly requirements. Ensure the single-row vertical orientation matches the PCB layout constraints. Cross-reference the 6-position count to avoid substitution errors within the broader M22 family.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row vertical header is required for through-board applications. The 2 mm pitch offers a balance between density and spacing. The tin finish is suitable for general-purpose environments, while the high-temperature housing supports demanding thermal conditions. Consider the 1 A rating for current capacity planning.

Headers, Male Pins Part Context

This part belongs to the M22 series, known for its modular design and robust construction. The series offers various row counts, pitches, and termination styles. The M22-2510646 specifically addresses the need for a compact, single-row solution with standard vertical mounting, fitting into the broader ecosystem of Harwin interconnect products.
