M22-2510846

Headers, Male Pins Overview

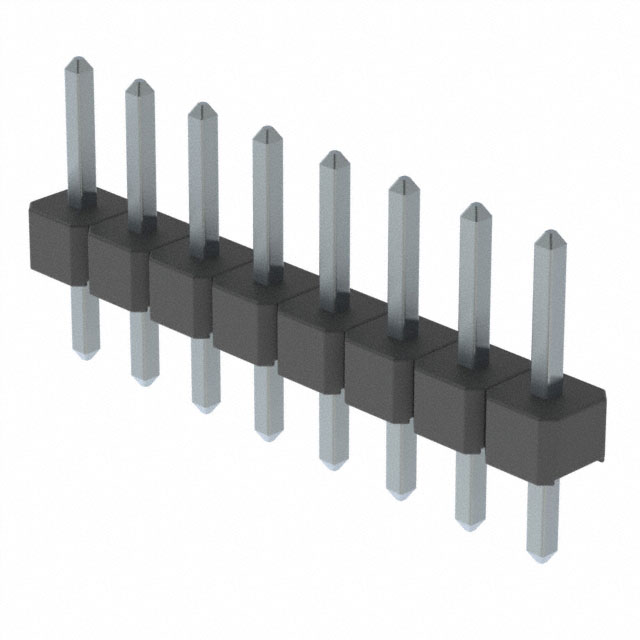

The M22-2510846 is a single-row male pin header connector from the Harwin M22 series, designed for board-to-board applications. It features an 8-position configuration with a 2.00 mm (0.079 inch) pitch. The connector utilizes through-hole vertical mounting and tin-plated phosphor bronze contacts. Key dimensions include a mating pin height of 3.50 mm, a tail pin length of 2.30 mm, and an insulation height of 1.50 mm. The housing is constructed from black polyamide (PA6T) with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Single-row straight design for compact vertical board stacking
• Tin-plated phosphor bronze contacts for reliable conductivity
• Cuttable strip format allows for custom contact counts
• Push-pull locking mechanism secures mating connections

Headers, Male Pins Applications

• Board-to-board interconnects in industrial control systems
• Signal routing in telecommunications equipment
• Internal connections within consumer electronic devices
• Automotive electronics module interfaces

Headers, Male Pins Procurement Notes

Verify component authenticity by checking manufacturer markings and datasheet alignment. Confirm that the specific part number matches the required 8-position count and 2mm pitch. Ensure compatibility with mating sockets regarding contact plating and locking style. Review environmental certifications such as RoHS compliance before integration into regulated products.

Headers, Male Pins Selection Notes

Select this model when a low-profile, single-row vertical header is required for space-constrained designs. The 2mm pitch offers higher density compared to standard 2.54mm options. Verify that the through-hole termination method aligns with the PCB manufacturing capabilities. Consider the push-pull locking requirement if vibration resistance is necessary for the application environment.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, known for high-density interconnect solutions. The series supports various row counts and orientations, including right-angle and surface-mount variants. The M22-2510846 specifically addresses needs for small-footprint vertical connections with robust mechanical retention.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Compatible alternatives must match the 2mm pitch, 8-position count, vertical orientation, and through-hole termination. Verify that any replacement maintains the same contact material and plating specifications to ensure electrical continuity.
